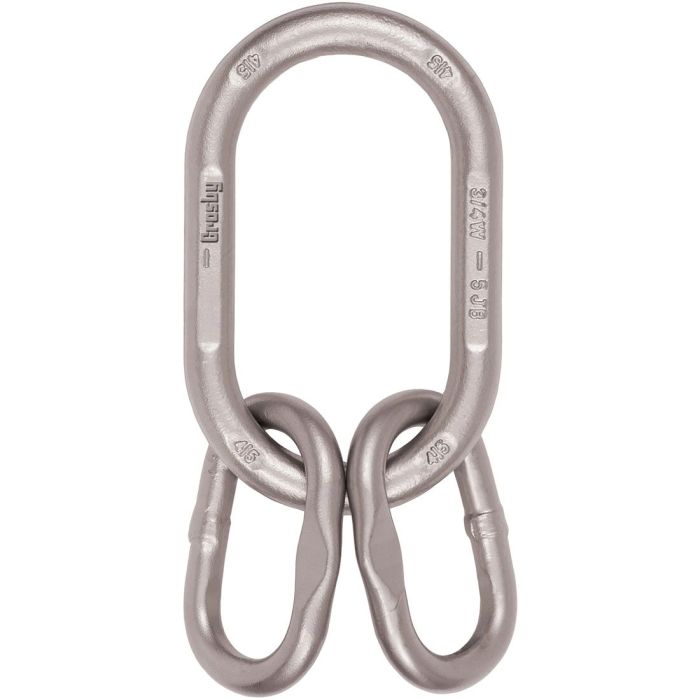

Crosby 3/4″W A-345 Master Link Assembly

Features:

• Alloy steel — Quenched & Tempered
• Individually Proof Tested to values shown, with certification
• Proof Tested with 60% inside width special fixtures sized to prevent localized point loading per ASME A-952
• Engineered Flat for use with S-1325A coupler link
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements
• Importantly, these links meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26

Specifications:

• Size: 3/4″
• Working Load Limit (WLL): 12,342 lbs
• 5:1 design factor
