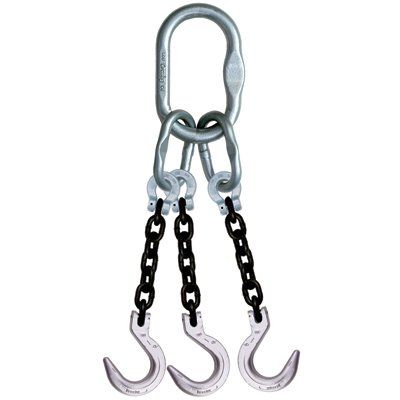

Crosby 5/8″x9′ Type TOF 3-Leg Grade 100 Chain Sling (Foundry Hooks)

Crosby grade 100 chain sling bridles are fabricated using Crosby grade 100 fittings and premium domestic grade 100 chain. All components are individually proof tested prior to assembly. Components meet ASTM A973 standards and meet or exceed ASME standards. Assembled with components forged in the USA, grade 100 chain slings with Crosby fittings are one of the most popular choices for overhead lifting applications.

• Chain Size: 5/8″
• Grade: 100
• Reach (Bearing Point to Bearing Point): 9′
• Hook Type: Foundry hooks
• Capacities:
  • @ 60 Degrees: 58,700 lbs
  • @ 45 Degrees: 47,900 lbs
  • @ 30 Degrees: 33,900 lbs
• Each component is marked with batch code, product code, size, and grade
• Metal tag with size, reach, capacity, and serial number installed on all lifting chain slings
