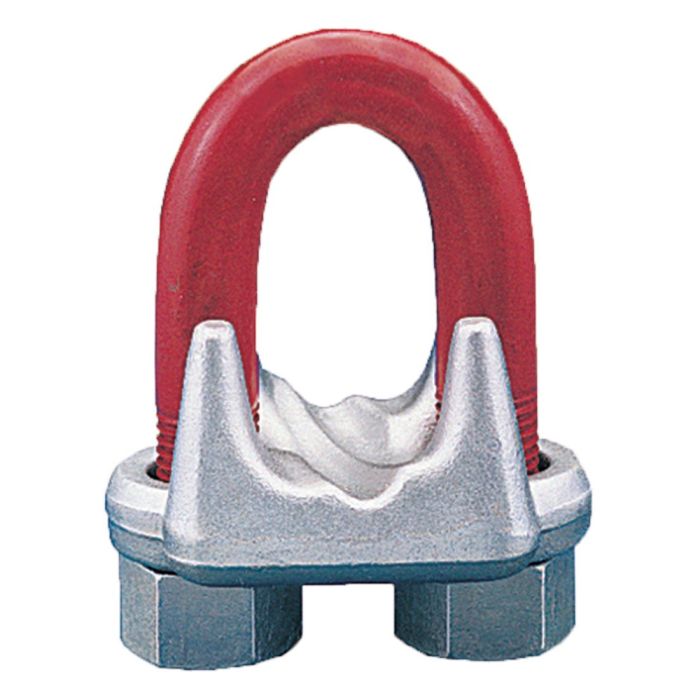

Crosby 7/16″ – 1/2″ G-450 Drop Forged Wire Rope Clip – Hot Dip Galvanized

$3.05

We Offer Customization & Great Prices! Feel Free to Contact Us!

10000 in stock

SKU: 3d2c366ed2f64c26 Category: Drop Forged Wire Rope Clips

Description

Wire rope / cable size: 7/16″ – 1/2″
Minimum clips required (per termination): 3
Minimum amount of turnback required: 11-1/2″
Drop Forged steel saddle
Hot Dip Galvanized
80% efficiency rating
All Clips are individually bagged or tagged with proper application instructions and warning information
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements
Meet other critical performance requirements including fatigue life, impact properties and material tracability, not addressed by ASME B30.26
All sizes 1/4” and larger meet the performance requirements of Federal Specification FF-C-450 TYPE 1 CLASS 1, except for those provisions required of the contractor
Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and a size forged into it
