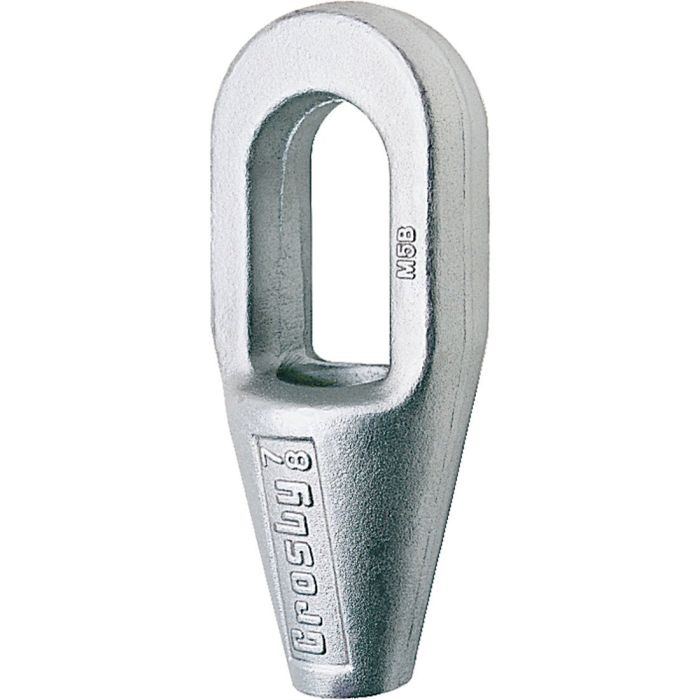

Crosby 9/16″ – 5/8″ G-417 Galvanized Closed Spelter Socket

Crosby G-417 Closed Spelter Sockets have an efficiency rating of 100%, based on the catalog strength of wire rope.

• For use with Wire Rope Size: 9/16″ – 5/8″
• Ultimate Load: 30.8 tons
• Forged steel
• Ratings are based on the recommended use with 6 x 7, 6 x 19 or 6 x 37, IPS or XIP (EIP) , XXIP (EEIP), RRL, FC or IWRC wire rope
• Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) times the wire diamete , whichever is the greater
• Closed Grooved Sockets meet the performance requirements of Federal Specification RR-S-550 , Type A, except for those provisions required of the contractor
