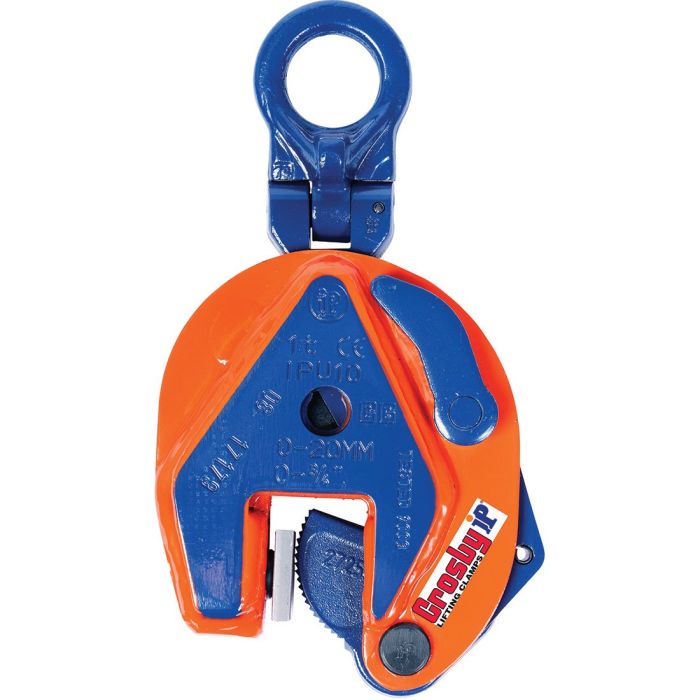

Crosby 9 Ton IPU10 Universal Plate Lifting Clamp (0″ – 2″ Grip Range)

Crosby IPU10 lifting clamps have a hinged eye and are designed for universal lifting, turning and transfer of steel sheets, plates, and shapes with a surface hardness to 363HV10 (345HB).

• Working Load Limit: 18,000 lbs (9.00 tons)
• Grip Range: 0″ – 2″
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• The hinged hoisting eye allows for the clamp to place and lift the load from any direction, or with a multiple leg sling without side-loading the clamp
• Welded alloy steel body for strength and smaller size with forged alloy components
• Individually Proof Tested to 2 times the Working Load Limit with certification
• CrosbyIP, logo, Working Load Limit and jaw opening permanently stamped on body
• Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty log book
• Lock open, lock closed ability with latch for pretension on material and then release of material
• Maintenance replacement kits are available
• Manufactured by a ISO 9001 facility
