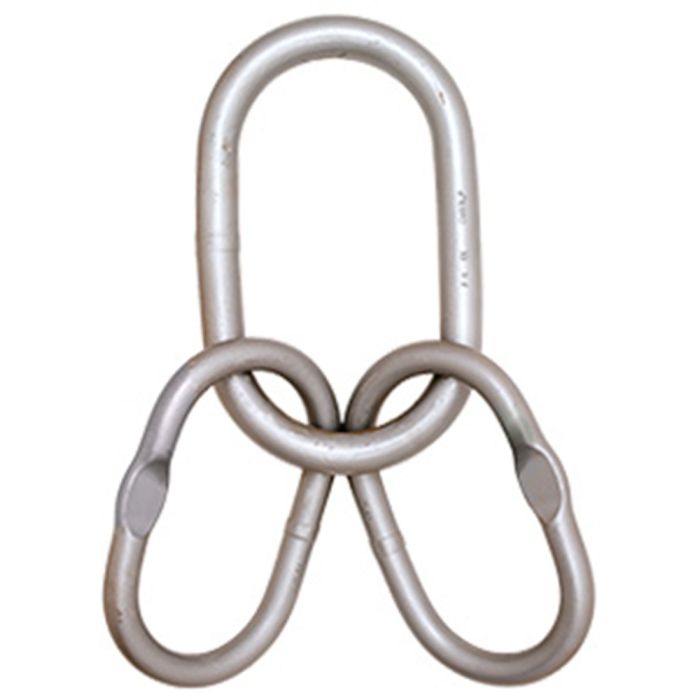

Crosby A-1346 Grade 100 Welded Master Link Assembly 1-1/8″ (WLL 31,900 lbs)

Features:

• Alloy steel – Quenched & Tempered
• Individually Proof Tested to values shown, with certification
• Engineered Flat for use with S-1325A coupler link
• Proof Tested with 70% inside width special fixtures sized to prevent localized point loading per EN 1677-4
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
• Each main link is marked with Product Identification Code (PIC) for material traceability, Grade, CE, chain size and the “CG” (Crosby Group)

Specifications:

• Size (main link thickness): 1-1/8″
• Inside Width (main link): 5.71″
• Inside Length (main link): 10.83″
• Working Load Limit (WLL): 31,900 lbs (15.95 tons)
• Proof Load: 80,005 lbs
• Engineered Flat for Coupling Link Size: 1/2″
• Design Factor 5:1
• Meets or exceeds all requirements of ASME B30.26
