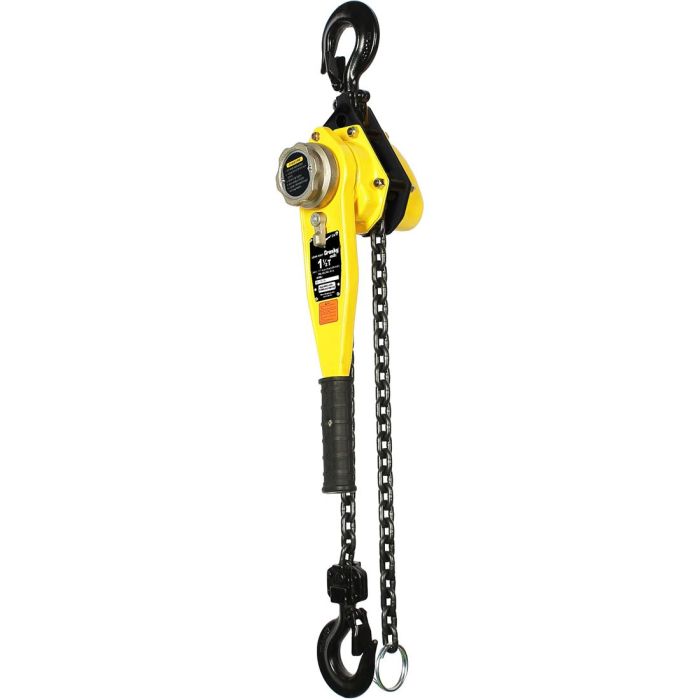

Crosby Accolift 1150425 Lever Hoist 3/4 Ton 10′ Lift with Overload Protection

Crosby’s Accolift Lever Hoists are lightweight, portable, chain type lever operated pullers. These hoists increase a worker’s efficiency in pulling, lifting, lowering, moving and skidding objects in industrial maintenance, construction and utility company applications. Minimal effort is required to move tons. The short handle and short stroke are designed to operate in tight places. Excellent for stretching cable and fencing, positioning machinery and building components.

• Model Number: 1150425
• Capacity: 3/4 Ton
• Lift: 10′ Lift
• Overload Protection
• Frame and side plate have rugged, lightweight steel design that supports and protects internal mechanism
• Load lever is designed and constructed to be easily operated by one person and can be easily disassembled for maintenance
• Two levers and a knob control the operation of the ACCOLIFT
  • The lifting “lock” lever can only be engaged when the hoist chain is slack (not under load)
  • The grip ring is then pulled to engage the load sheave
  • Choose “Up” or “Down” position on the handle to raise or lower the load
• Six tooth pinion gear and four pocket load sheave makes operation easy. Gears are permanently lubricated
• Mechanical Load Brake can hold a full capacity load stationary in any position. Load is not transferred back to handle during handle advancement
• Electric welded alloy steel chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves
• Load Block supports the suspension hook and allows it to rotate 360° under capacity loads
• All hooks are drop forged, heat treated steel with spring type latches. Both hooks rotate 360° for easy rigging
