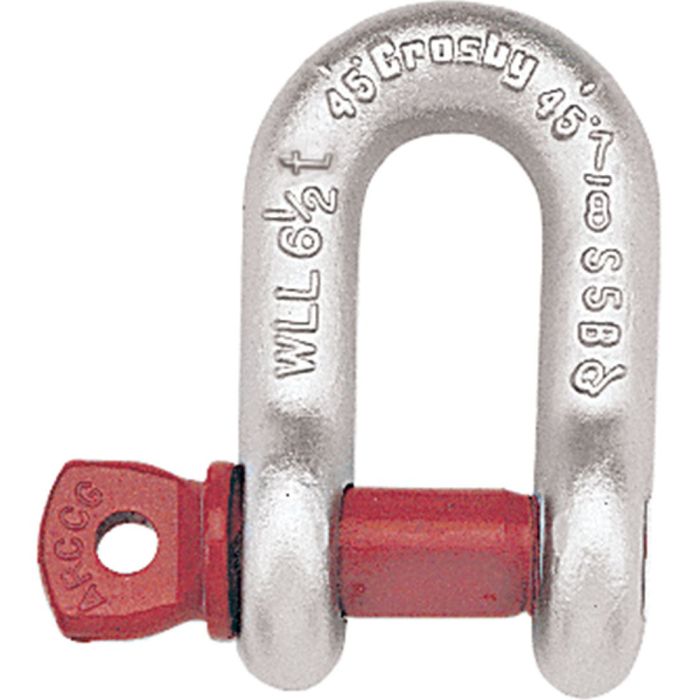

Crosby G-210 Screw Pin Chain Shackle 1/4″ – Hot Dip Galvanized

Crosby G-210 Screw Pin Chain Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.

Features:

• Approved for use at -40° C (-40° F) to 204° C (400° F)
• Forged Carbon Steel – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle
• Meets the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 2, except for those provisions required of the contractor

Specifications:

• Size (Shackle Body Thickness): 1/4″
• Throat Opening (Width Between Ears): 0.47″
• Throat Depth: 0.91″
• Pin Size: 0.31″
• Pin Type: Screw Pin
• Finish: Hot Dip Galvanized
• Material: Carbon Steel Body & Alloy Steel Pin
• Working Load Limit: 0.50 tons (1000 lbs)
• USA
