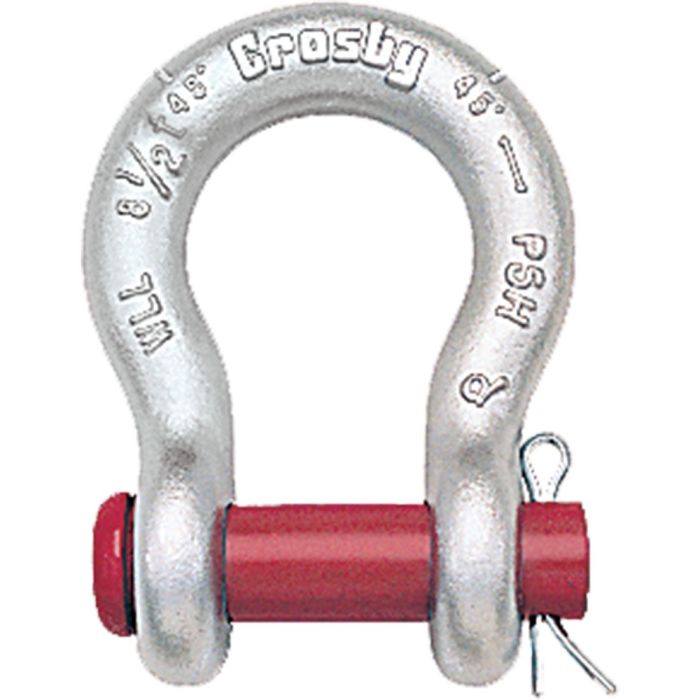

Crosby G-213 Round Pin Anchor Shackle 1-1/4″ – Hot Dip Galvanized

Crosby G-213 Round Pin Anchor Shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 1, except for those provisions required of the contractor.

Features:

• Fatigue rated
• Forged – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle

Specifications:

• Size (Shackle Body Thickness): 1-1/4″
• Throat Opening (Width Between Ears): 2.03″
• Throat Depth: 4.69″
• Pin Size: 1.38″
• Pin Type: Round Pin & Cotter
• Finish: Hot Dip Galvanized
• Material: Carbon Steel Body & Alloy Steel Pin
• Working Load Limit: 12.00 tons (24,000 lbs)
• USA
