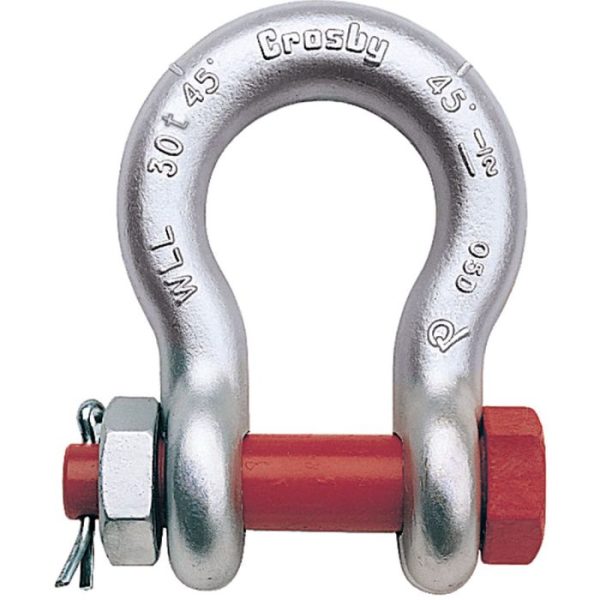

Crosby G-2140 Bolt Type Anchor Shackle 3/4″ – Hot Dip Galvanized

Crosby G-2140 Alloy Bolt Type Anchor Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.

Features:

• Approved for use at -40° C (-40° F) to 204° C (400° F)
• Forged Alloy Steel – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle
• Meets the performance requirements of Federal Specification RR-C 271G, Type IVA, Grade B, Class 3, except for those provisions required of the contractor

Specifications:

• Size (Shackle Body Thickness): 3/4″
• Throat Opening (Width Between Ears): 1.25″
• Throat Depth: 2.81″
• Pin Size: 0.89″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Hot Dip Galvanized
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 7.00 tons (14,000 lbs)
• USA
