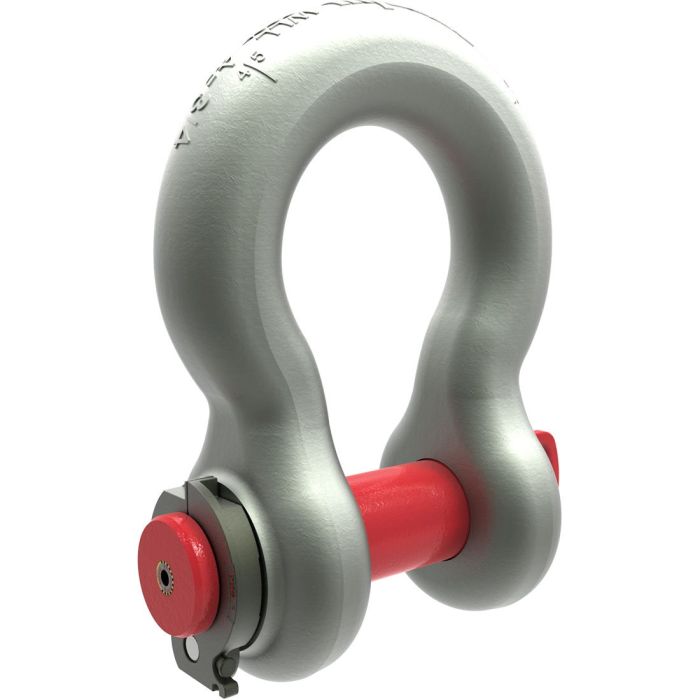

Crosby G-2140E Easy-Loc Anchor Shackle 6″ – Hot Dip Galvanized

Crosby G-2140E Alloy Easy-Loc Anchor Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26. Equipped with the Easy-Loc V2 shackle bolt which reduces install/release times by up to 90%.

Features:

• Approved for use at -40° C (-40° F) to 204° C (400° F)
• Forged Alloy Steel – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle
• Meets the performance requirements of Federal Specification RR-C 271G, Type IVA, Grade B, Class 3, except for those provisions required of the contractor

Specifications:

• Size (Shackle Body Thickness): 6″
• Throat Opening (Width Between Ears): 8.38″
• Throat Depth: 18.72″
• Pin Size: 6.00″
• Pin Type: Crosby Easy-Loc V2 Tm Pin
• Finish: Hot Dip Galvanized
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 300.00 tons (600,000 lbs)
• USA
