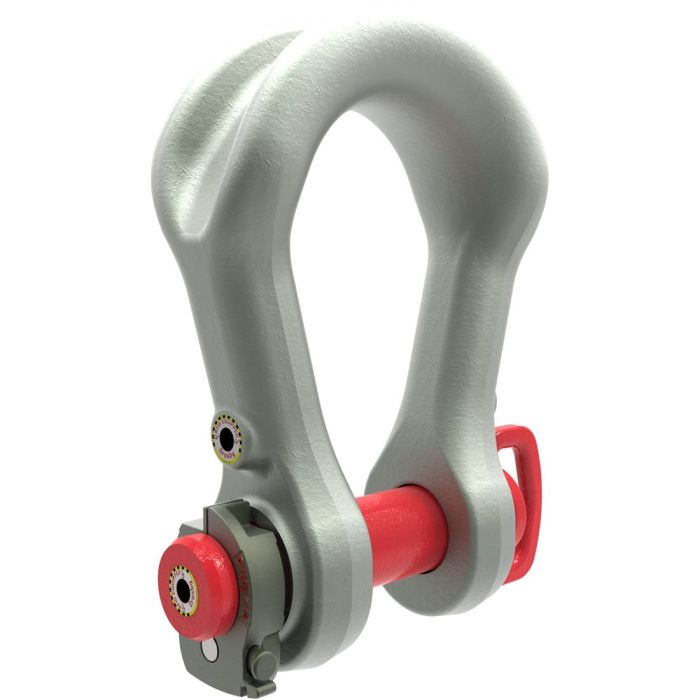

Crosby G-2140E Easy-Loc Wide Body Shackle 75 Ton – Hot Dip Galvanized

Crosby G-2160 Bolt Type Wide Body Shackles have an increased shackle bow radius which provides a minimum 58% gain in sling bearing surface and eliminates the need for a thimble. Crosby Wide Body Shackles greatly improve the wearability of high strength round slings, wire rope slings, and synthetic web slings. Equipped with the Easy-Loc V2 shackle bolt which reduces install/release times by up to 90%. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

Features:

• Forged alloy steel – quenched and tempered for maximum strength
• Individually proof tested and magnetic particle inspected
• Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings
• Approved for use at -40°C (-40°F) to 204°C (400°F)

Specifications:

• Size (Shackle Body Thickness): Wide Body 75 ton
• Throat Opening (Width Between Ears): 4.13″
• Throat Depth: 11.54″
• Pin Size: 3.15″
• Pin Type: Crosby Easy-Loc V2 Tm Pin
• Finish: Hot Dip Galvanized
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 75.00 tons (150,000 lbs)
• Standards & Certifications: ASME B30.26 (identification, ductility , design factor, proof load and temperature requirements)
• USA
