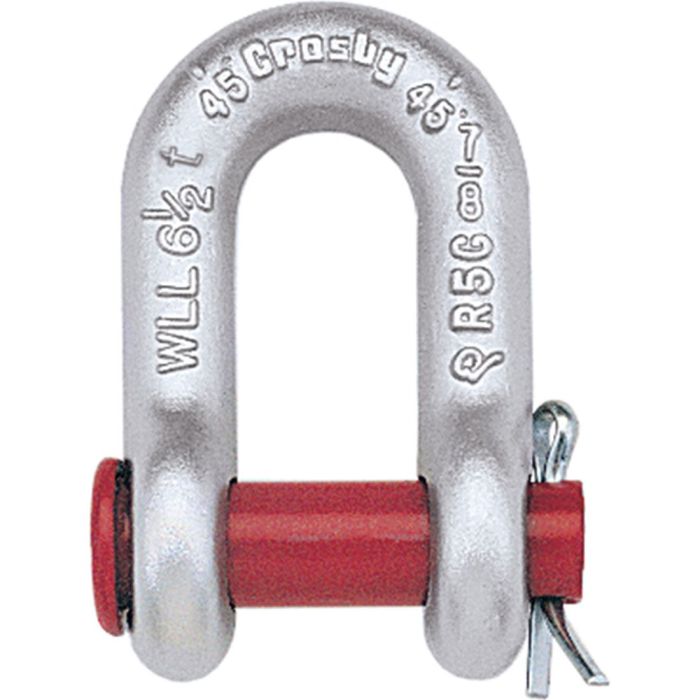

Crosby G-215 Round Pin Chain Shackle 1-1/2″ – Hot Dip Galvanized

Crosby G-215 Round Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 1, except for those provisions required of the contractor.

Features:

• Forged Carbon Steel – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle

Specifications:

• Size (Shackle Body Thickness): 1-1/2″
• Throat Opening (Width Between Ears): 2.38″
• Throat Depth: 4.87″
• Pin Size: 1.63″
• Pin Type: Round Pin & Cotter
• Finish: Hot Dip Galvanized
• Material: Carbon Steel Body & Alloy Steel Pin
• Working Load Limit: 17.00 tons (34,000 lbs)
• USA
