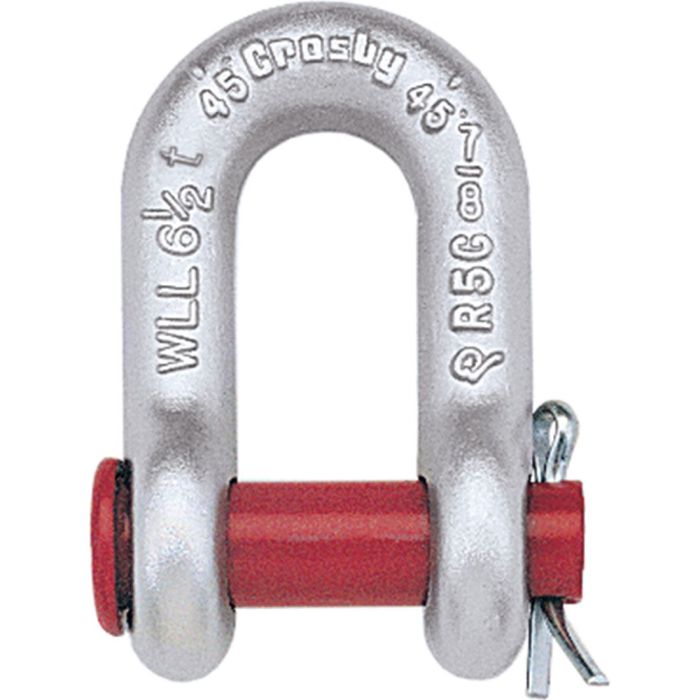

Crosby G-215 Round Pin Chain Shackle 2″ – Hot Dip Galvanized

Crosby G-215 Round Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 1, except for those provisions required of the contractor.

Features:

• Forged Carbon Steel – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle

Specifications:

• Size (Shackle Body Thickness): 2″
• Throat Opening (Width Between Ears): 3.25″
• Throat Depth: 6.82″
• Pin Size: 2.25″
• Pin Type: Round Pin & Cotter
• Finish: Hot Dip Galvanized
• Material: Carbon Steel Body & Alloy Steel Pin
• Working Load Limit: 35.00 tons (70,000 lbs)
• USA
