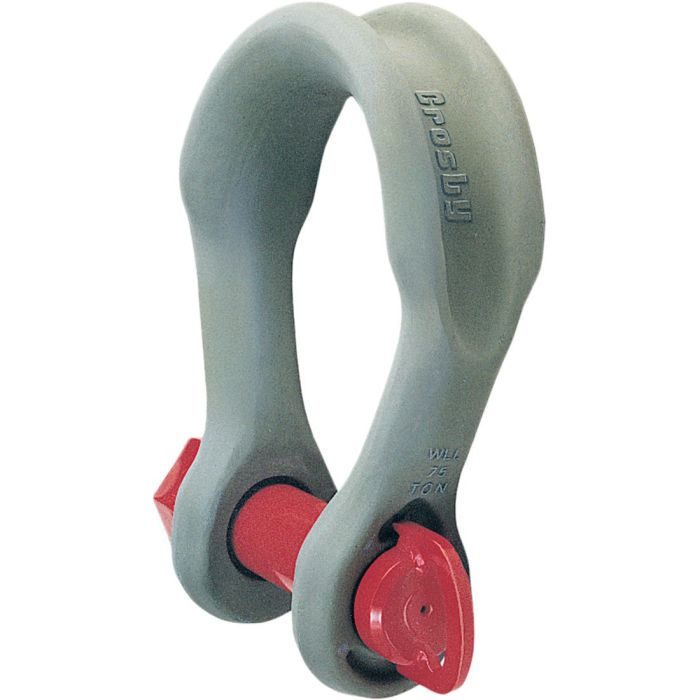

Crosby G-2160 Bolt Type Wide Body Shackle 7 Ton – Hot Dip Galvanized

Crosby G-2160 Bolt Type Wide Body Shackles have an increased shackle bow radius which provides a minimum 58% gain in sling bearing surface and eliminates the need for a thimble. Crosby Wide Body Shackles greatly improve the wearability of high strength round slings, wire rope slings, and synthetic web slings. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

Features:

• Forged alloy steel – quenched and tempered for maximum strength
• Individually proof tested and magnetic particle inspected
• Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings
• Approved for use at -40°C (-40°F) to 204°C (400°F)

Specifications:

• Size (Shackle Body Thickness): Wide Body 7 ton
• Throat Opening (Width Between Ears): 1.25″
• Throat Depth: 3.56″
• Pin Size: 0.88″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Hot Dip Galvanized
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 7.00 tons (14,000 lbs)
• Standards & Certifications: ASME B30.26 (identification, ductility , design factor, proof load and temperature requirements)
• USA
