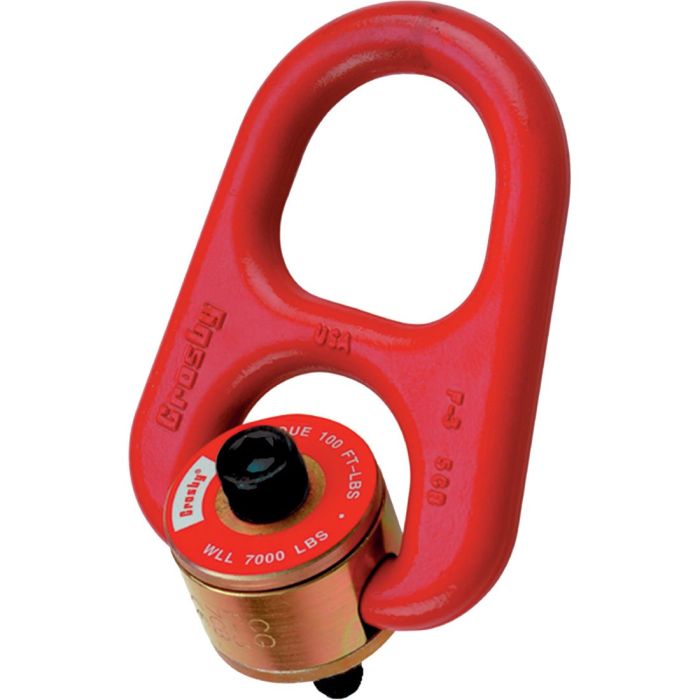

Crosby HR-1000 Heavy Lift Swivel Hoist Ring 1″-8 x 1.35″

Crosby HR-1000 Heavy Lift Hoist Ring forged bails provide the following: Easily readable “Raised Lettering” showing the name Crosby or “CG” and PIC Code for material traceability. Greater durability providing the increased “Toughness” desired in potentially abusive field conditiont. Larger open

Features:

• Top washer is color coded for easy identification: Red = UNC threads
• RFID equipped
• The Working Load Limit and Recommended Torque value are permanently stamped into each washer
• Individually Proof Tested to 2-1/2 times Working Load Limit

Specifications:

• Bolt Diameter/Thread: 1″-8
• Effective Thread Projection Length: 1.35″
• Finish: Painted
• Bolt Torque Requirement: 230 ft-lbs
• Working Load Limit: 10,000 lbs
• Design Factor 5:1
• USA
