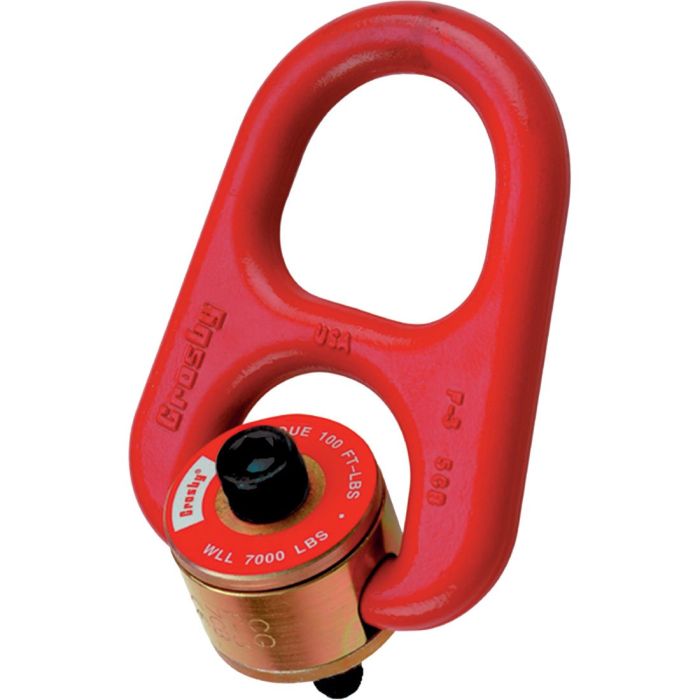

Crosby HR-1000M Swivel Hoist Ring M36-4.00 x 130mm

Crosby HR-1000M Metric Heavy Lift Hoist Ring forged bails provide the following: Easily readable “Raised Lettering” showing the name Crosby or “CG” and PIC Code for material traceability. Greater durability providing the increased “Toughness” desired in potentially abusive field conditiont. Larger open

Features:

• Top washer is color coded for easy identification: Silver = Metric threads
• The Working Load Limit and Recommended Torque value are permanently stamped into each washer
• Individually Proof Tested to 2-1/2 times Working Load Limit

Specifications:

• Bolt Diameter/Thread: M36-4.00
• Effective Thread Projection Length: 130mm
• Finish: Painted
• Bolt Torque Requirement: 741 ft-lbs
• Working Load Limit: 24,200 lbs
• Design Factor 5:1
• USA
