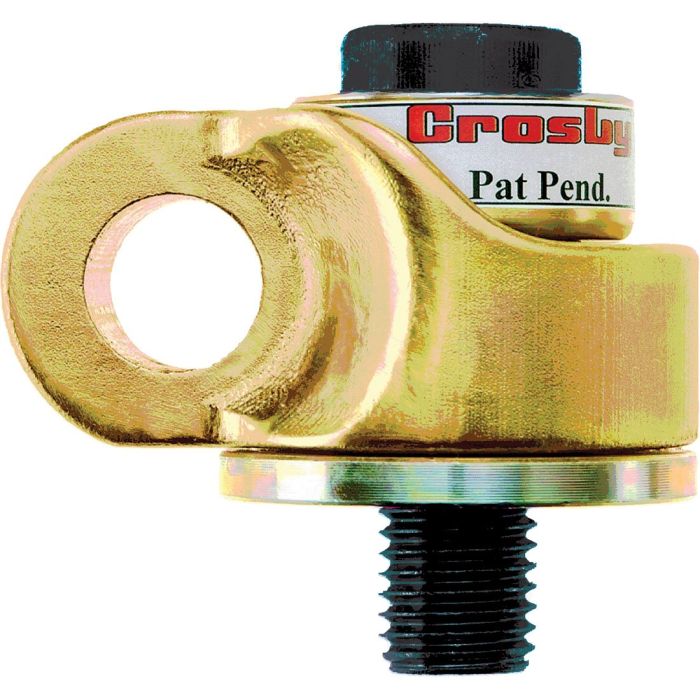

Crosby HR-1200M Side Pull Hoist Ring M20-2.50 x 28.1″

Crosby HR-1200M Metric Side Pull Hoist Ring body components are Alloy Steel – Quenched and Tempered

Features:

• Rated at 100% of Working Load Limit for angles up to 90 degrees
• RFID equipped
• Yellow Chromate finish for improved corrosion resistance
• Utilize standard Crosby Red Pin® Shackles to connect to wire rope or synthetic slings (sold separately)
• Each unit is stamped with a Product Identification Code (PIC), Working Load Limit, and the Crosby or “CG” logo for authenticity
• Individually Proof Tested to 2-1/2 times Working Load Limit

Specifications:

• Bolt Diameter/Thread: M20-2.50
• Effective Thread Projection Length: 28.1″
• Finish: Zinc Plated
• Material: Alloy Steel – Quenched and Tempered
• Bolt Torque Requirement: 100 ft-lbs
• Working Load Limit: 4950 lbs
• Design Factor 5:1
• USA
