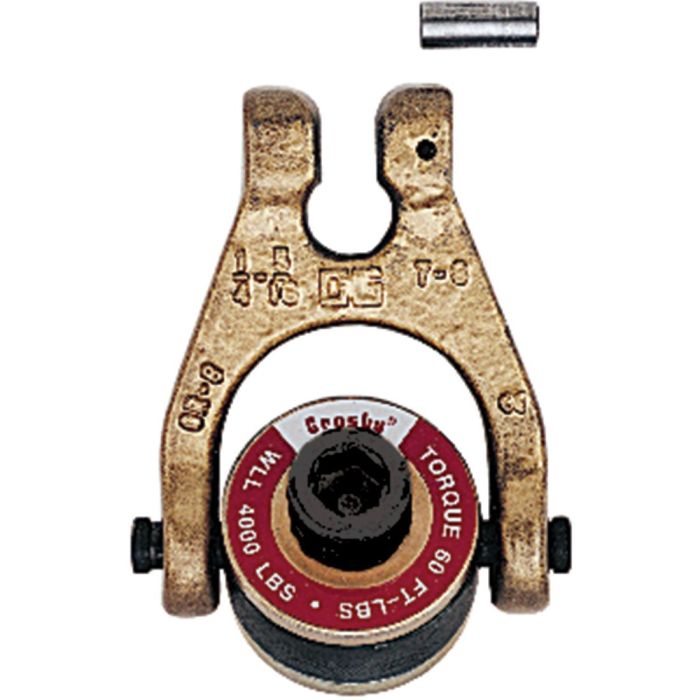

Crosby HR-125C Ring to Chain Hoist Ring 1″-8 x 1.15″

Crosby HR-125C Ring to Chain Hoist Rings are designed to fit Grade 80 and Grade 100 chain

Features:

• Full 360 degrees swivel and 180 degrees pivot action
• RFID equipped
• “Yellow Chromate” finish for increased corrosion protection
• Individually Proof Tested to 2-1/2 times Working Load Limit
• Bolt specification is a Grade 8 Alloy socket head cap screw to ASTM A574

Specifications:

• Bolt Diameter/Thread: 1″-8
• Effective Thread Projection Length: 1.15″
• Finish: Zinc Plated
• Material: Forged Alloy Steel
• Bolt Torque Requirement: 230 ft-lbs
• Working Load Limit: 12,000 lbs
• Design Factor 4:1
• USA
