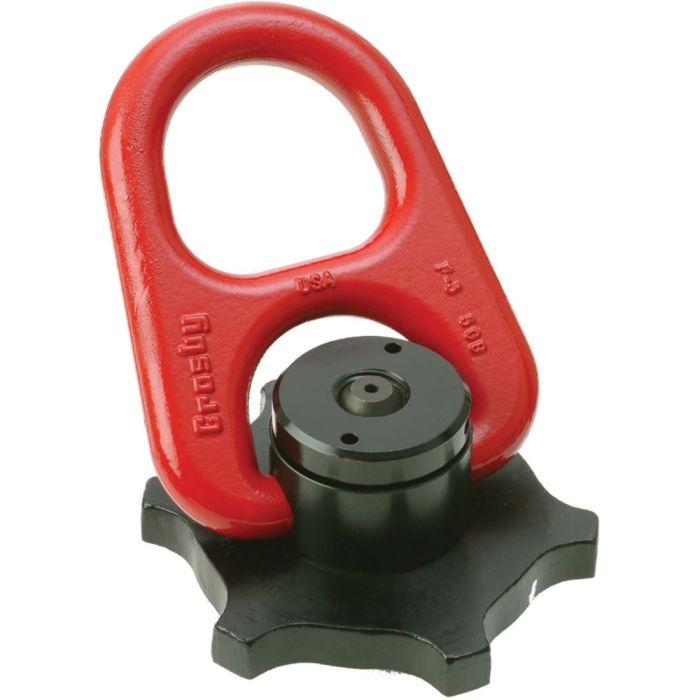

Crosby HR-500 Trench Cover Hoist Ring 1-1/2″-3.5 (Coil Thread) x 1-1/2″

Crosby® HR-500 Trench Cover Hoist Rings are designed to simplify the lifting and placement of steel plates used to cover trenches in streets.

Features:

• Forged bail provides 80 degree pivot and a 360 degree rotation at full capacity
• RFID Equipped
• Individually proof tested to 2-1/2 times working load limit

Specifications:

• Bolt Diameter/Thread: 1-1/2″-3.5 (Coil Thread)
• Effective Thread Projection Length: 1-1/2″
• Finish: Painted
• Working Load Limit: 15,000 lbs
• Design Factor 5:1
• USA
