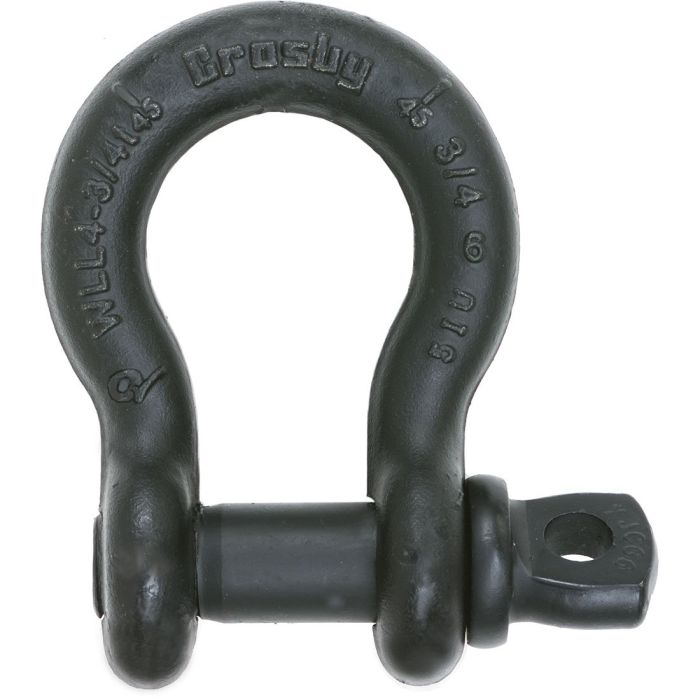

Crosby S-209T Black Theatrical Screw Pin Anchor 3/8″ – Painted

Crosby S-209T Theatrical Black Screw Pin Anchor Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26. Crosby Theatrical Shackles are powder coated flat black to help hide the rigging from the audience.

Features:

• Flat black baked on powder coated finish
• Forged Carbon Steel – Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle
• Approved for use at -40° C (-40° F) to 204° C (400° F)

Specifications:

• Size (Shackle Body Thickness): 3/8″
• Throat Opening (Width Between Ears): 0.66″
• Throat Depth: 1.44″
• Pin Size: 0.44″
• Pin Type: Screw Pin
• Finish: Painted
• Material: Carbon Steel Body & Alloy Steel Pin
• Working Load Limit: 1.00 tons (2000 lbs)
• Meets the performance requirements of Federal Specification RR-C 271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor
• USA
