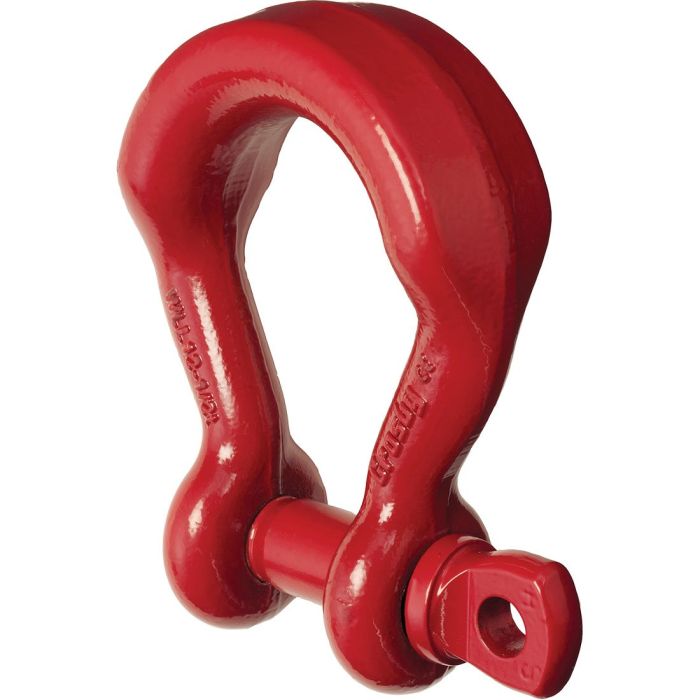

Crosby S-2169 Screw Pin Wide Body Shackle 18 Ton – Painted

Crosby S-2169 Alloy Screw Pin Wide Body Shackles significantly improves the life of wire rope slings. They can be used to connect high strength round slings, synthetic round slings or wire rope slings. The increase in shackle bow radius provides minimum 58% gain in sling bearing surface. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

Features:

• Forged alloy steel – quenched and tempered for maximum strength
• Individually proof tested and magnetic particle inspected

Specifications:

• Size (Shackle Body Thickness): Wide Body 18 ton
• Throat Opening (Width Between Ears): 2.03″
• Throat Depth: 5.81″
• Pin Size: 1.38″
• Pin Type: Screw Pin
• Finish: Painted
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 18.00 tons (36,000 lbs)
• Standards & Certifications: ASME B30.26 (identification, ductility , design factor, proof load and temperature requirements)
• USA
