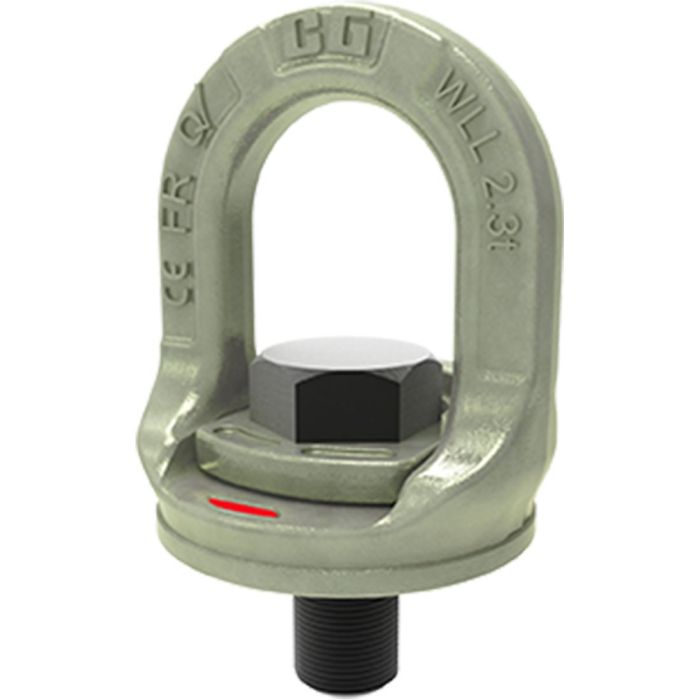

Crosby SL-150 Lifting Point (1″-8 x 1.59″)

Crosby SL-150 SLIDE-LOC® Lifting Points meet or exceed all requirements of ASME B30.26 including identification,ductility, design factor, proof load and temperature requirements. Importantly, these lifting points meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

• Bolt Diameter/Thread: 1″-8
• Effective Thread Projection Length: 1.59″
• Working Load Limit: 6400 lbs (5:1 design factor)
• Bolt Torque Requirement: Painted
• Unique locking mechanism makes the lifting point well suited for quick attachment to load surface – No need for tools
• Features QUIC-CHECK markings on bail to assist in knowing when device is ready for lifting
• Bail is Forged Alloy Steel – Quenched and Tempered, and swivels 360° degree
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit, and meets the Machinery Directive 2006/42/EC guidelines with CE and is marked accordingly
• Rated at 100% for 90 degree angle
