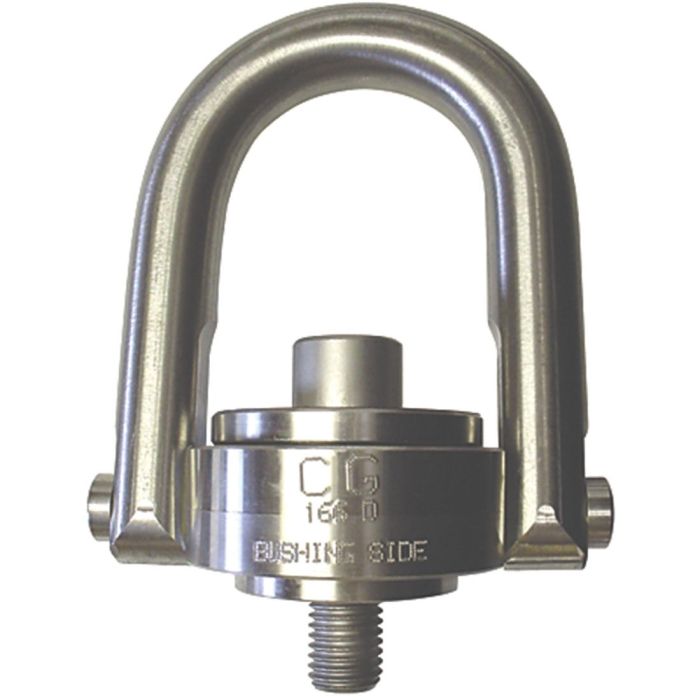

Crosby SS-125 Stainless Steel Swivel Hoist Ring (5/16″-18 x 0.54″)

Crosby SS-125 Stainless Steel Swivel Hoist Rings

• Bolt Diameter/Thread: 5/16″-18
• Effective Thread Projection Length: 0.54″
• Working Load Limit: 400 lbs (5:1 design factor)
• Bolt Torque Requirement: 4 ft-lbs
• Finish: Plain
• All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS15700) magnetic stainless steel
• Rated at 100 percent at 90 degree angle
• Each product has a Product Identification Code (PIC) for material traceability, along with the Working Load Limit and the name Crosby or “CG” stamped into it
• Individually proof tested to 2 times the Working Load Limit with certification
• Fatigue Rated at 20,000 cycles 1-1/2 times the Working Load Limit
• Washer is color coded for easy identification (Red = UNC thread)
• Bolt specification is 316 Stainless Steel socket head cap screw to ASTM F 837 Group 1 (316)
• Frame 2 and larger are RFID EQUIPPED
