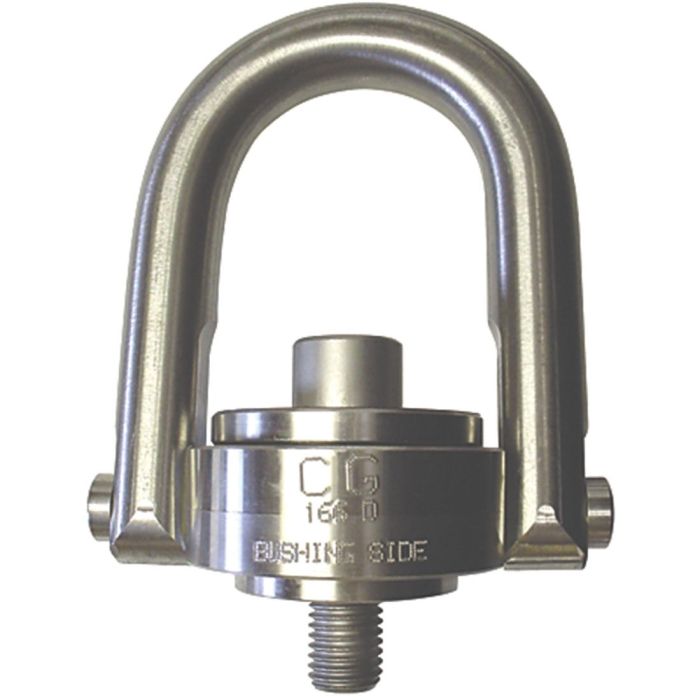

Crosby SS-125 Swivel Hoist Ring Stainless Steel 3/4″-10 x 1.04″

The Crosby SS-125 Stainless Steel Swivel Hoist Ring is designed for superior lifting performance, safety, and durability. With a 100% rated capacity at a 90-degree angle, it ensures secure and reliable lifting operations in demanding environments.

Features:

• Rated at 100 percent at 90 degree angle
• Frame 2 and larger are RFID EQUIPPED
• Washer is color coded for easy identification (Red = UNC thread)
• Each unit is stamped with a Product Identification Code (PIC), Working Load Limit, and the Crosby or “CG” logo for authenticity
• Fatigue Rated at 20,000 cycles 1.5 times the Working Load Limit
• Individually proof tested to 2 times the Working Load Limit with certification
• Built with a 316 stainless steel socket head cap screw (ASTM F 837 Group 1)

Specifications:

• Bolt Diameter/Thread: 3/4″-10
• Effective Thread Projection Length: 1.04″
• Finish: Plain
• Material: 316 Stainless Steel (Bolt retainers made from 15-7 PH (UNS15700) magnetic stainless steel)
• Bolt Torque Requirement: 50 ft-lbs
• Working Load Limit: 3500 lbs
• Design Factor 5:1
• USA
