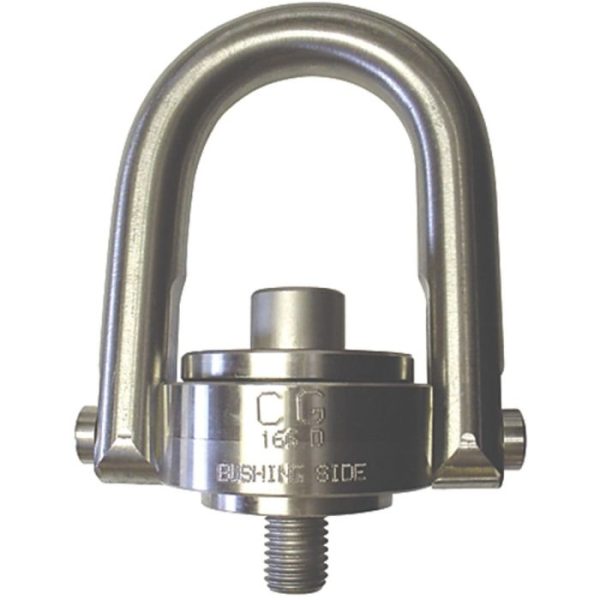

The Crosby SS-125 Stainless Steel Swivel Hoist Ring is designed for superior lifting performance, safety, and durability. With a 100% rated capacity at a 90-degree angle, it ensures secure and reliable lifting operations in demanding environments.
Features:
- Rated at 100 percent at 90 degree angle
- Frame 2 and larger are RFID EQUIPPED
- Washer is color coded for easy identification (Silver = Metric thread)
- Each unit is stamped with a Product Identification Code (PIC), Working Load Limit, and the Crosby or “CG” logo for authenticity
- Fatigue Rated at 20,000 cycles 1.5 times the Working Load Limit
- Individually proof tested to 2 times the Working Load Limit with certification
- Built with a 316 stainless steel socket head cap screw (ASTM F 837 Group 1)
Specifications:
- Bolt Diameter/Thread: M42-4.50
- Effective Thread Projection Length: 82mm
- Finish: Plain
- Material: 316 Stainless Steel (Bolt retainers made from 15-7 PH (UNS15700) magnetic stainless steel)
- Bolt Torque Requirement: 399 ft-lbs
- Working Load Limit: 13,750 lbs
- Design Factor 5:1
- USA
