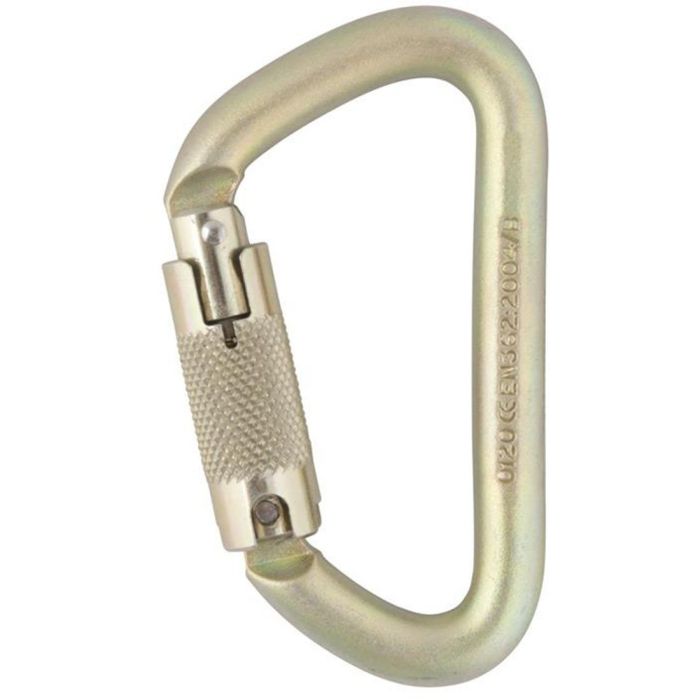

The DMM Offset D connector takes the spinal loading strength of a D-shaped back but extends the basket at one end to maximize gate opening and overall size without compromising ergonomics and weight. Cold forged from 12mm bar, the strengths achieved in testing exceed 45kN and it is first choice in applications requiring stronger connectors in their systems.
- Width: 62mm (2.5″)
- Length: 111mm (4.4″)
- Color: Light Gold
- Shape: Assymetrical D
- Gate Opening: 17mm (0.67″)
- Material: Steel
- Gate Type: 2-Stage Locking
- Major Axis Strength: 45 kN (10116 lbs)
- Minor Axis Strength: 12 kN (2697 lbs)
- Open Gate Strength: 12 kN (2697 lbs)
- Certifications: EN 362 Type B/T, EN 12275 Type B
