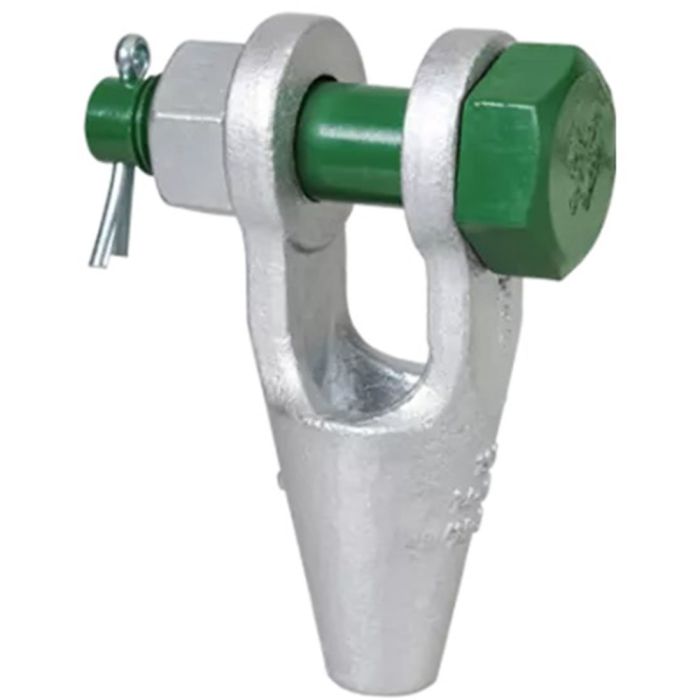

The Green Pin® Open Spelter Socket BN is an open spelter socket with a safety bolt. The socket offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The socket is made from high tensile steel, while galvanization ensures its long-term durability. Can be used in combination with the Socket Lock Socketing Resin.
- For use with Wire Rope Diameter: 1/4″ (6mm-7mm)
- Minimum Breaking Load: 8 tons (17,600 lbs)
- Jaw Opening Width: 3/4″
- Jaw Inside Length: 1-5/16″
- Pin Diameter: 5/8″
- Overall Length: 4.29″
- Material: High Tensile Steel
- Finish: Hot Dipped Galvanized
- Imported
