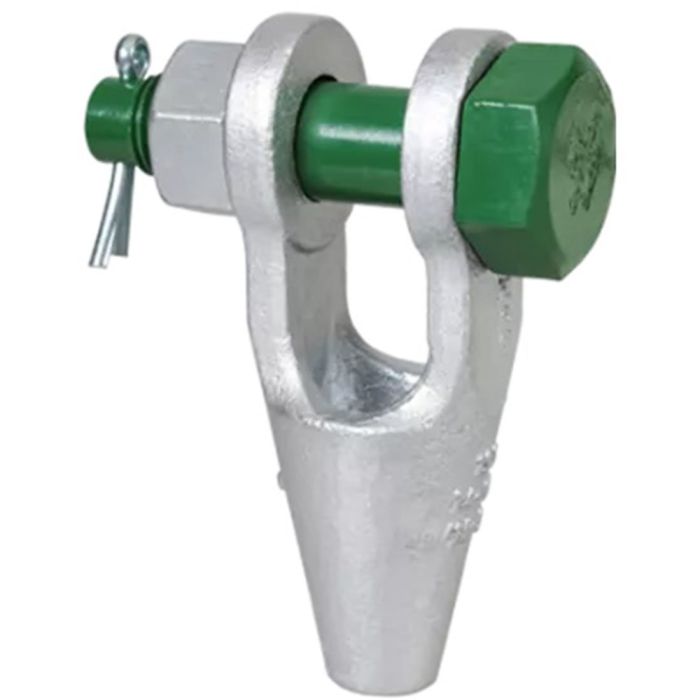

The Green Pin® Open Spelter Socket BN is an open spelter socket with a safety bolt. The socket offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The socket is made from high tensile steel, while galvanization ensures its long-term durability. Can be used in combination with the Socket Lock Socketing Resin.
- For use with Wire Rope Diameter: 1″ (23mm-26mm)
- Minimum Breaking Load: 85 tons (187,000 lbs)
- Jaw Opening Width: 2″
- Jaw Inside Length: 3″
- Pin Diameter: 1-31/32″
- Overall Length: 10.83″
- Material: High Tensile Steel
- Finish: Hot Dipped Galvanized
- Imported
