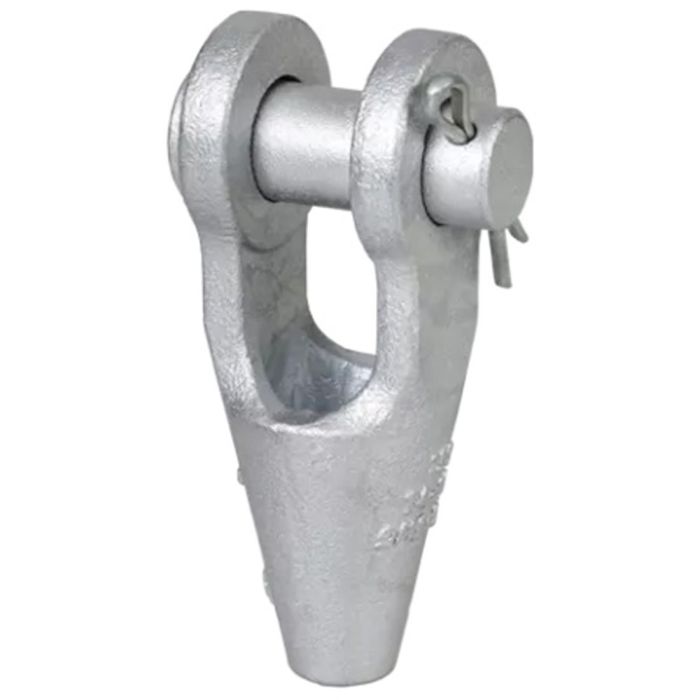

The Green Pin® Open Spelter Socket CP is an open spelter socket with a spring pin. The socket is made from high tensile steel, while galvanization ensures its long-term durability. Can be used in combination with the Socket Lock Socketing Resin.
- For use with Wire Rope Diameter: 3″ – 3-1/8″ (76mm-80mm)
- Minimum Breaking Load: 560 tons (1,232,000 lbs)
- Jaw Opening Width: 5-3/4″
- Jaw Inside Length: 8-5/8″
- Pin Diameter: 5-1/4″
- Overall Length: 29.02″
- Material: High Tensile Steel
- Finish: Hot Dipped Galvanized
- Imported
