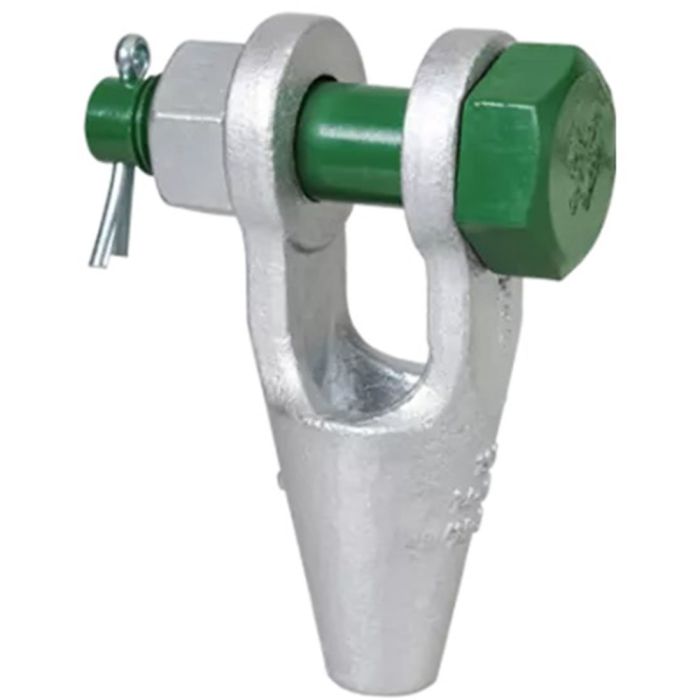

The Green Pin® Open Spelter Socket BN is an open spelter socket with a safety bolt. The socket offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The socket is made from high tensile steel, while galvanization ensures its long-term durability. Can be used in combination with the Socket Lock Socketing Resin.
- For use with Wire Rope Diameter: 3/4″ (18mm-19mm)
- Minimum Breaking Load: 45 tons (99,000 lbs)
- Jaw Opening Width: 1-1/2″
- Jaw Inside Length: 2-9/32″
- Pin Diameter: 1-3/8″
- Overall Length: 8.07″
- Material: High Tensile Steel
- Finish: Hot Dipped Galvanized
- Imported
