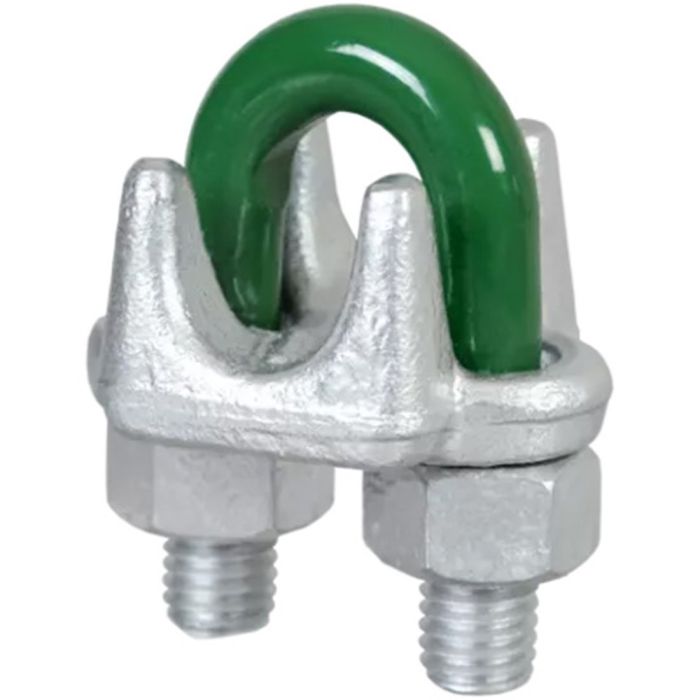

Green Pin 5/8″ G-6240 Drop Forged Wire Rope Clip – Hot Dip Galvanized

The Green Pin® Wire Rope Clip is a wire rope clip, generally to EN 13411-5 Type B. This wire rope clip is safer to work with as the ribs on the bearing surface of the clip prevent sliding of the wire rope. Furthermore, the wire rope clip is made from high tensile steel, while galvanization ensures its long-term durability.

• Wire Rope / Cable Size: 5/8″ (16mm)
• Thread Diameter: 9/16″
• Thread Length: 1.26″
• Base Length: 2.52″
• Material: Drop forged high tensile steel (Bridge: SAE 1045, U-Bolt: SAE 1015)
• Finish: Hot Dipped Galvanized
• Standard: EN 13411-5 Type B (formerly U.S. Federal Specification FF-C-450D)
• Imported
