Green Pin 9/16″ – 5/8″ G-6422 Galvanized Open Spelter Socket with Safety Bolt

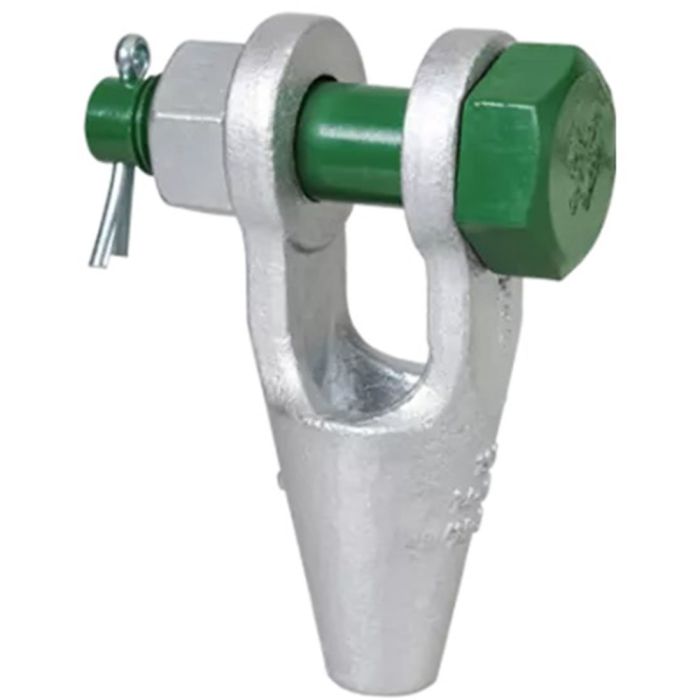

The Green Pin® Open Spelter Socket BN is an open spelter socket with a safety bolt. The socket offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The socket is made from high tensile steel, while galvanization ensures its long-term durability. Can be used in combination with the Socket Lock Socketing Resin.

• For use with Wire Rope Diameter: 9/16″ – 5/8″ (14mm-16mm)
• Minimum Breaking Load: 25 tons (55,000 lbs)
• Jaw Opening Width: 1-5/16″
• Jaw Inside Length: 1-15/16″
• Pin Diameter: 1-3/16″
• Overall Length: 6.77″
• Material: High Tensile Steel
• Finish: Hot Dipped Galvanized
• Imported
