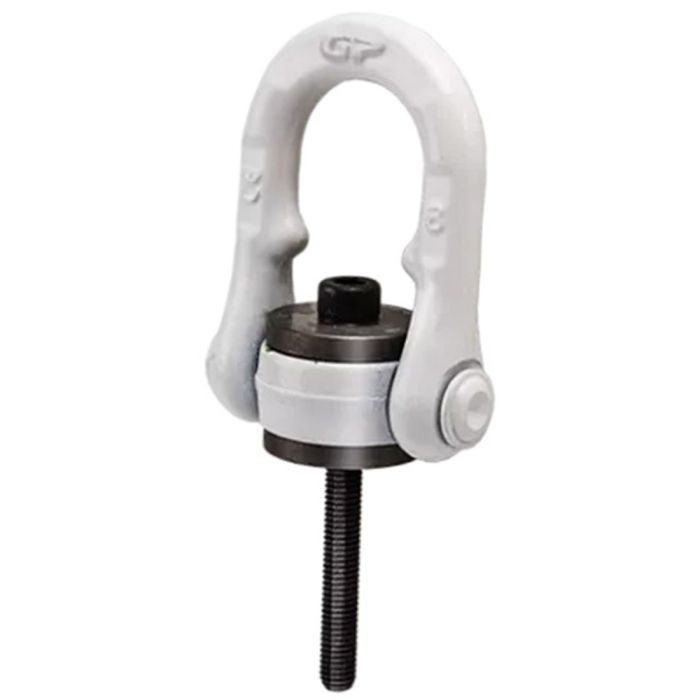

The Green Pin® Long Rotating Hoist Ring is a grade 8 rotating hoist ring with longer length shank. This hoist ring with longer length can rotate 360° and pivot 180°. It has ISO metric threads as standard. The cylindric head of the screw prevents jamming during rotation of the hoist ring. The WLL indicated hereunder are given in the worst conditions of use, i.e. 90°. It is necessary to check the free moving of the pivoting shackle.
Specifications:
- Bolt Diameter/Thread: M16-2.00
- Effective Thread Projection Length: 172mm
- Finish: Painted
- Material: Grade 8 Alloy Steel (quenched and tempered)
- Torque: 41 ft-lbs
- Working Load Limit: 1.6 tons (3520 lbs)
- Design Factor 5:1
- Imported
