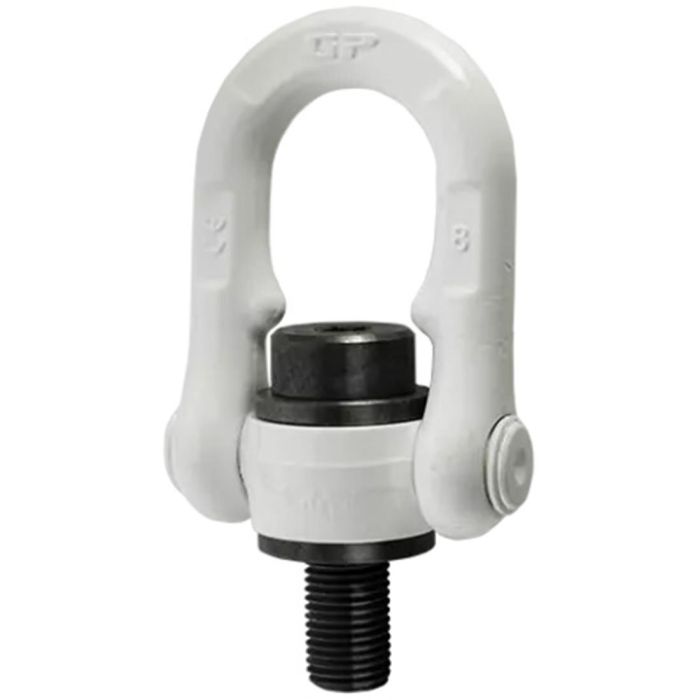

The Green Pin® Rotating Hoist Ring UNC is a grade 8 rotating hoist ring with UNC thread. This hoist ring with UNC thread can rotate 360° and pivot 180°. It has UNC threads as standard. The cylindric head of the screw prevents jamming during rotation of the hoist ring.
Specifications:
- Bolt Diameter/Thread: 1″-8
- Effective Thread Projection Length: 1.61″
- Finish: Painted
- Material: Grade 8 Alloy Steel (quenched and tempered)
- Torque: 140 ft-lbs
- Working Load Limit: 4.5 tons (9900 lbs)
- Design Factor 5:1
- Imported
