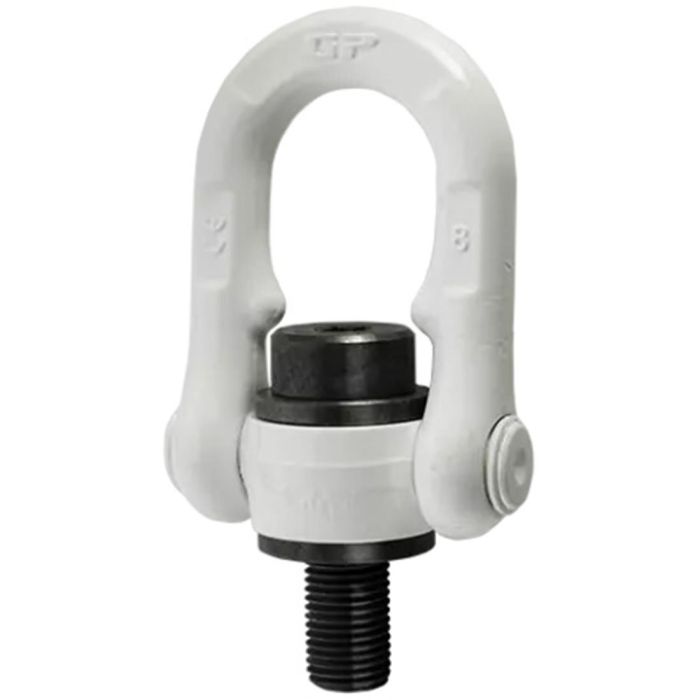

Green Pin ADAUNC Rotating Hoist Ring 5/16″-18 x 0.71″

The Green Pin® Rotating Hoist Ring UNC is a grade 8 rotating hoist ring with UNC thread. This hoist ring with UNC thread can rotate 360° and pivot 180°. It has UNC threads as standard. The cylindric head of the screw prevents jamming during rotation of the hoist ring.

Specifications:

• Bolt Diameter/Thread: 5/16″-18
• Effective Thread Projection Length: 0.71″
• Finish: Painted
• Material: Grade 8 Alloy Steel (quenched and tempered)
• Torque: 5 ft-lbs
• Working Load Limit: 0.4 tons (880 lbs)
• Design Factor 5:1
• Imported
