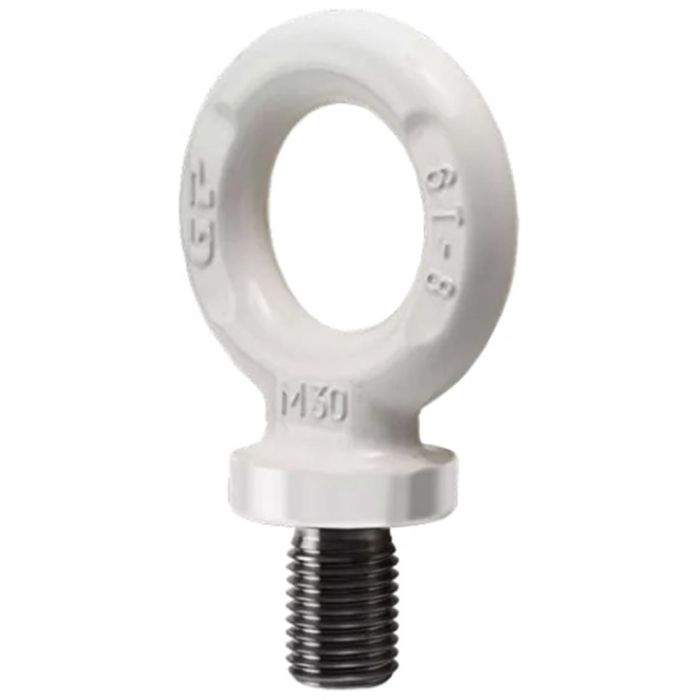

Green Pin ALDIN Metric Lifting Eye (M30 x 45mm)

The Green Pin® Lifting Eye DIN580 is a grade 8 lifting eye with a shorter length in conformity with the DIN580 standard. Its extensive range of alloy steel lifting eyes incorporates 22 different ISO metric threads as standard. The WLL for lifting points are valid for in-line lifting only but can be side-loaded with a reduction of the WLL. The thread length of the lifting eye should be adapted to the material of the load.

• Shank Diameter/Thread: M30 x 3.5
• Thread Length: 45mm
• Eye Diameter: 60mm
• Working Load Limit (WLL): 6 tons (13,200 lbs)
• Material: Grade 8 Alloy Steel (quenched and tempered)
• Finish: Painted
• Design Factor 5:1
• Imported
