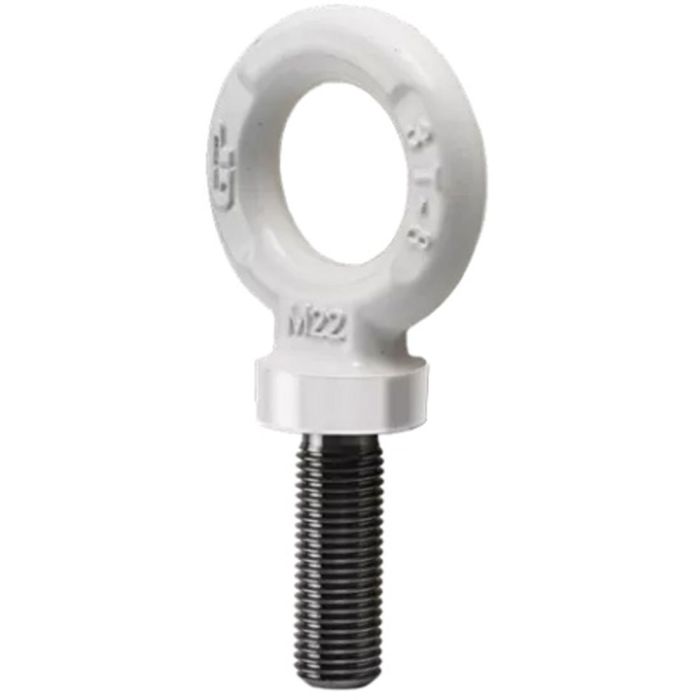

Green Pin ALUNC Lifting Eye (5/8″ x 2-3/32″)

The Green Pin® Lifting Eye UNC is a grade 8 lifting eye with UNC thread. Its extensive range of alloy steel lifting eyes, incorporates 13 different UNC threads. The WLL for lifting points are valid within 45° to the vertical only, but can be even side loaded with reduction of the WLL. The longer thread length of the ALUNC makes a through-hole mounting with a nut and washer on the other side possible. The nut on the bolt should at least be class 8, but class 10 or 12 is recommended. The thread length of the lifting eye should be adapted to the material of the load.

• Shank Diameter/Thread: 5/8″-11
• Thread Length: 2-3/32″
• Eye Diameter: 1-3/8″
• Working Load Limit (WLL): 1.5 tons (3300 lbs)
• Material: Grade 8 Alloy Steel (quenched and tempered)
• Finish: Painted
• Design Factor 5:1
• Imported
