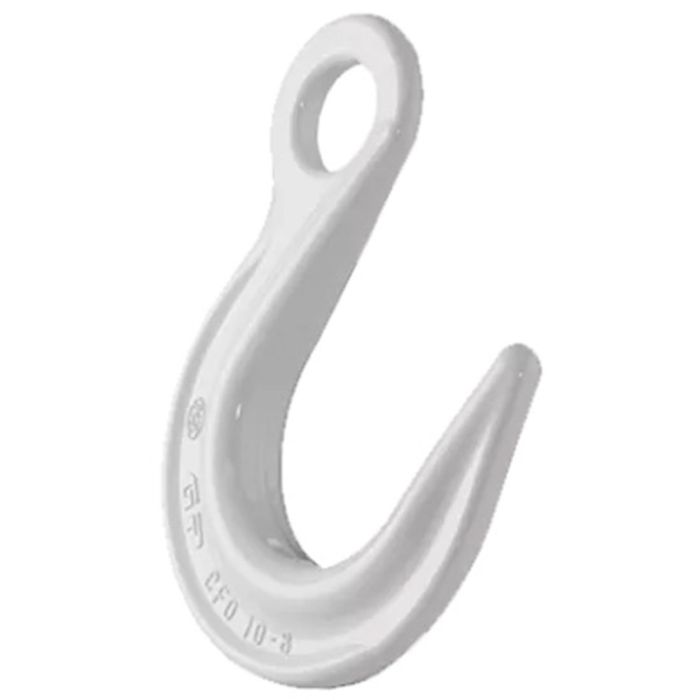

The Green Pin® Foundry Hook E is a grade 8 eye foundry hook. The throats are designed to accommodate standard trunnions, whereas the tips enable easy insertion into the holes of the melting pots. These hooks must be used for specific applications in foundries as they do not have safety latches.
- Fits Chain Diameter: 1/4″ – 5/16″
- Working Load Limit (WLL): 2 tons (4400 lbs)
- Hook Opening: 2.52″
- Eye Inside Diameter: 0.98″
- Overall Length: 6.50″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Temp. Range: -40°C up to +200°C
- Design Factor 4:1
- Made in France
