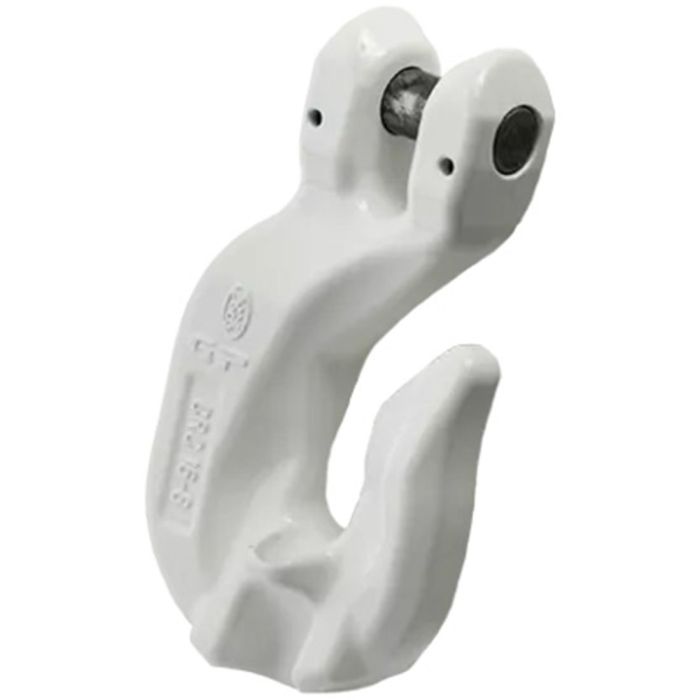

Green Pin CRC Grade 80 Clevis Grab Hook 5/8″ (WLL 18,040 lbs)

The Green Pin® Grab Hook CL EN1677-1 is a grade 8 clevis grab hook according to European standard for components for sling EN 1677-1. Grab hooks are designed with a special curved narrow throat used to “grab” and shorten or hold a length of chain used in general lifting applications. In case of asymmetric load, the grab hook can be used to adjust one or more legs of the sling. The curved design of this throat makes inserting the chain easier and quicker. Once fitted the chain is perfectly secured, because the curved throat avoids the chain to slip out and two pitches support the link properly. The clevis design enables a direct connection to grade 8 chain. When connecting the clevis hook to a master link, use at least 3 grade 8 chain links between the hook and the connecting link fixed on the master link.

• Fits Chain Size: 5/8″ (16mm)
• Working Load Limit (WLL): 8.2 tons (18,040 lbs)
• Clevis Width: 23/32″
• Pin Diameter: 25/32″
• Opening: 3/4″
• Overall Length: 8.43″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
