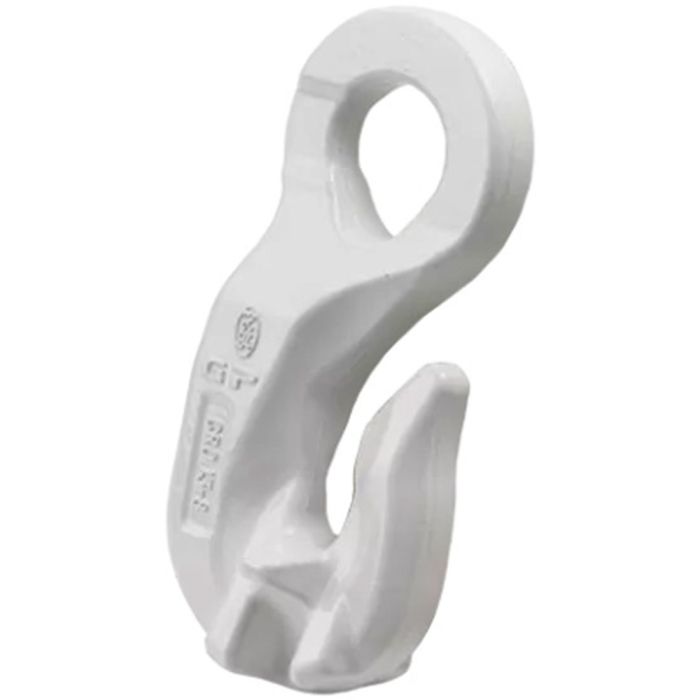

Green Pin CRO Grade 80 Eye Grab Hook 5/8″ (WLL 18,040 lbs)

The Green Pin® Grab Hook E EN1677-1 is a grade 8 eye grab hook according to European standard for components for sling EN 1677-1. Grab hooks are designed with a special curved narrow throat used to “grab” and shorten or hold a length of chain used in general lifting applications. In case of asymmetric load, the grab hook can be used to adjust one or more legs of the sling. The curved design of this throat makes inserting the chain easier and quicker. Once fitted the chain is perfectly secured, because the curved throat avoids the chain to slip out and two pitches support the link properly. The flat on the eye enables the assembly with an omega link.

• Fits Chain Size: 5/8″ (16mm)
• Working Load Limit (WLL): 8.2 tons (18,040 lbs)
• Eye Inside Length: 2-3/32″
• Eye Inside Width: 2-1/16″
• Opening: 3/4″
• Overall Length: 9.29″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
