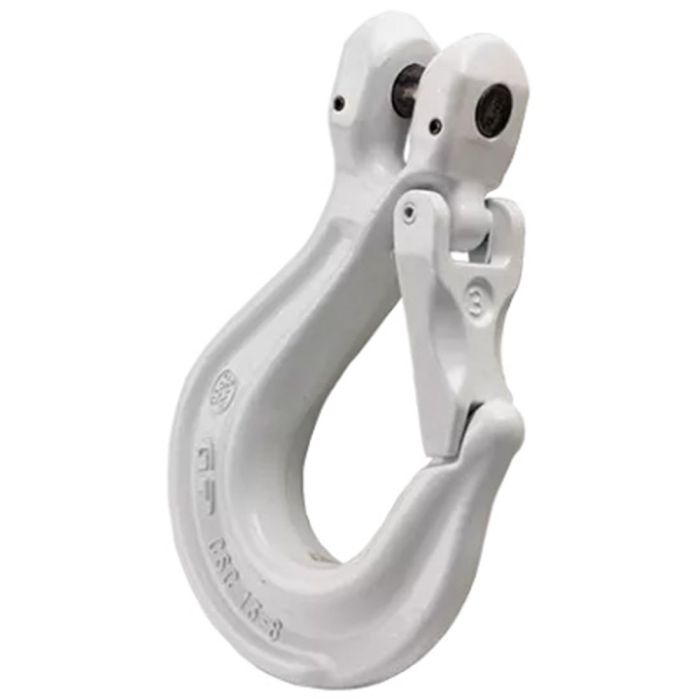

The Green Pin® Sling Hook CL EN1677-2 is a grade 8 clevis sling hook according to European standard for components for sling EN 1677-2. The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The clevis design enables a direct connection to grade 8 chain.
- Fits Chain Size: 1/4″ – 5/16″ (7mm-8mm)
- Working Load Limit (WLL): 2 tons (4400 lbs)
- Clevis Width: 11/32″
- Pin Diameter: 11/32″
- Hook Opening: 1-3/16″
- Overall Length: 5.35″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Design Factor 4:1
- Made in France
