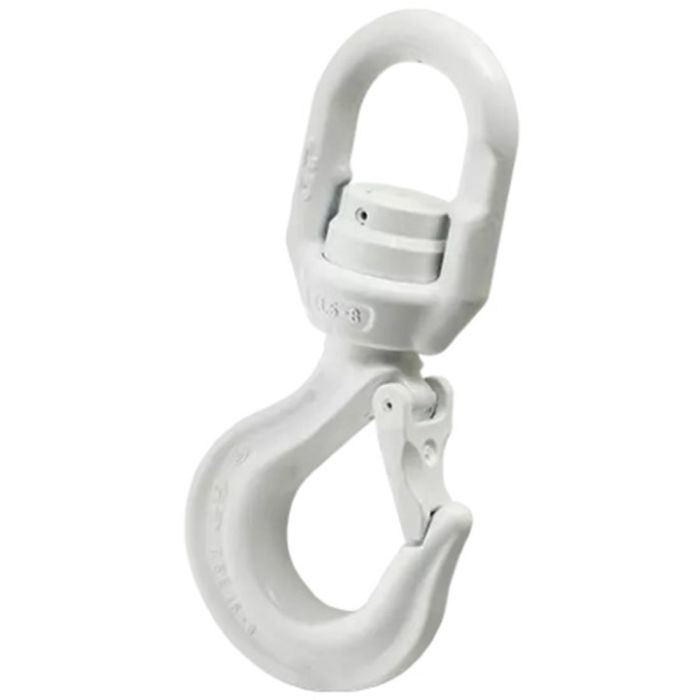

Green Pin CSE Grade 80 Swivel Sling Hook 3/16″ – 7/32″ (WLL 2464 lbs)

The Green Pin® Sling Hook SE EN1677-2 is a grade 8 swivel sling hook with an eye, designed according to the European standard for components for sling EN 1677-2. Ideal for general lifting applications, this hook features an easy-operating latch for quick and safe connections to load lifting points.

Features:

• Forged latch ensures longer lifespan and reduces the risk of use without the latch
• Fitted with a stainless steel spring and a sturdy pin
• Large eye, designed with a flat, enables easy assembly on anti-rotating wire rope slings (with an omega link or thimbles)
• Equipped with a needle roller thrust bearing for smooth, easy rotation under load
• Eye can connect to grade 8 chain with a connecting link or to webbing with a web sling connector
• Made in France

Specifications:

• Fits Chain Size: 3/16″ – 7/32″ (5mm-6mm)
• Working Load Limit (WLL): 1.12 tons (2464 lbs)
• Eye Inside Length: 1-5/16″
• Eye Inside Width: 1-1/4″
• Hook Opening: 1-1/32″
• Overall Length: 6.46″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
