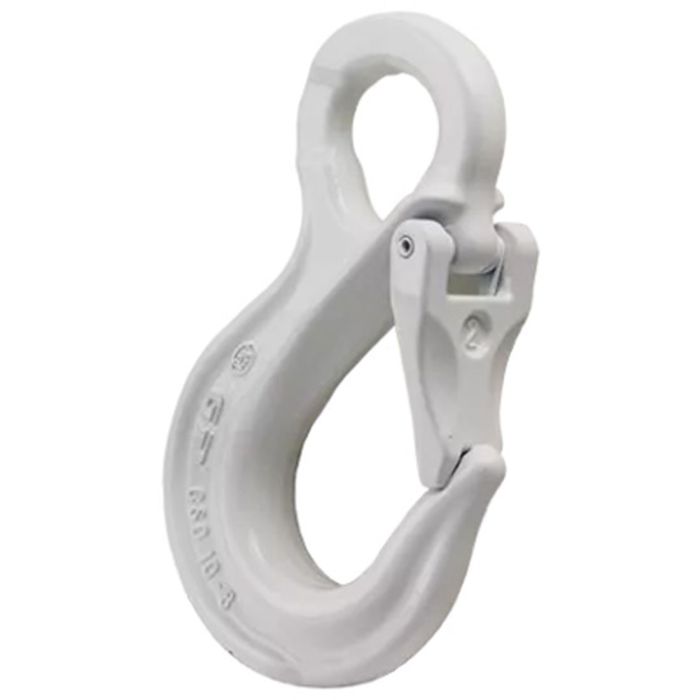

Green Pin CSO Grade 80 Eye Sling Hook 3/16″ – 7/32″ (WLL 2464 lbs)

The Green Pin® Sling Hook E EN1677-2 is a grade 8 eye sling hook that meets the European standard EN 1677-2. Suitable for general lifting, it features an easy-operating latch for quick and safe connections to load lifting points. Simply push the latch, attach the hook, and release. The forged latch, with a stainless steel spring and sturdy pin, ensures a long lifespan and minimizes the risk of using the hook without the latch. The eye of the hook can connect to grade 8 chain with a connecting link or omega link, to webbing with a web sling connector, or to wire rope with a thimble. The flat on the eye facilitates assembly with an omega link or on a thimble.

• Fits Chain Size: 3/16″ – 7/32″ (5mm-6mm)
• Working Load Limit (WLL): 1.12 tons (2464 lbs)
• Eye Inside Diameter: 29/32″
• Hook Opening: 1-1/32″
• Overall Length: 4.49″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Compliant with EN1677-2 and ASTM A952/A952M standards
• Design Factor 4:1
• Made in France
