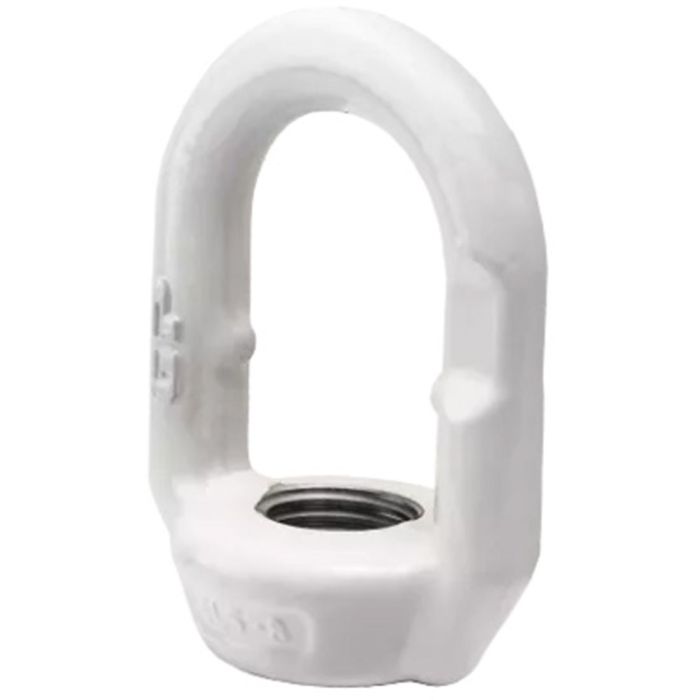

Green Pin EL Grade 80 Eye Nut M10 x 1.50 (7/16″ Bail Diameter)

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard.

• Thread Diameter: M10 x 1.50
• Working Load Limit (WLL): 0.7 tons (1540 lbs)
• Bail Diameter: 7/16″
• Base Diameter: 1.22″
• Base Thickness: 0.55″
• Eye Inside Length: 1.77″
• Eye Inside Width: 1.18″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 5:1
• Imported
