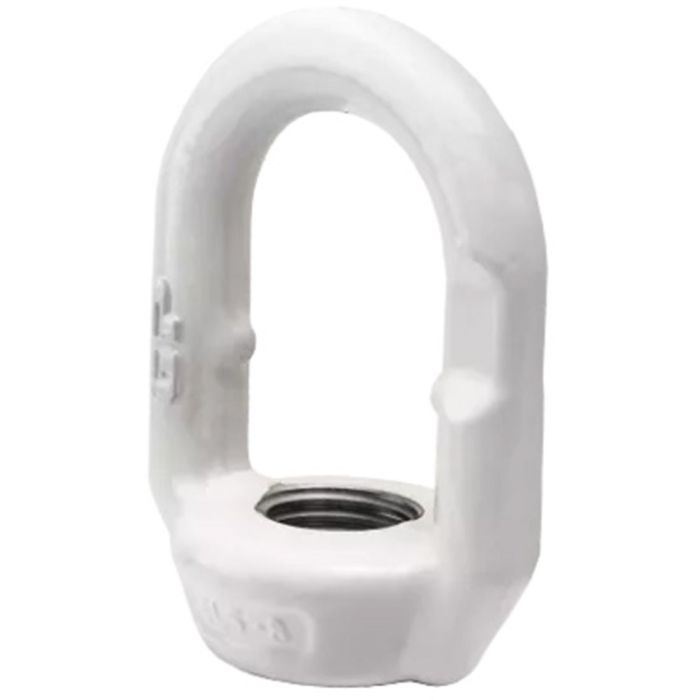

Green Pin EL Grade 80 Eye Nut M14 x 2.00 (15/32″ Bail Diameter)

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard.

• Thread Diameter: M14 x 2.00
• Working Load Limit (WLL): 1.2 tons (2640 lbs)
• Bail Diameter: 15/32″
• Base Diameter: 1.54″
• Base Thickness: 0.59″
• Eye Inside Length: 1.89″
• Eye Inside Width: 1.26″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 5:1
• Imported
