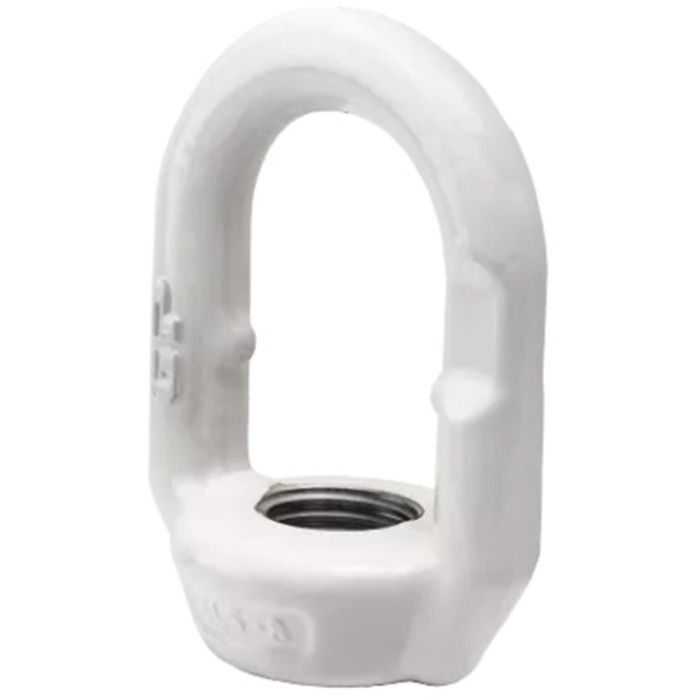

Green Pin EL Grade 80 Eye Nut M18 x 2.50 (9/16″ Bail Diameter)

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard.

• Thread Diameter: M18 x 2.50
• Working Load Limit (WLL): 2 tons (4400 lbs)
• Bail Diameter: 9/16″
• Base Diameter: 1.73″
• Base Thickness: 0.63″
• Eye Inside Length: 2.36″
• Eye Inside Width: 1.46″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 5:1
• Imported
