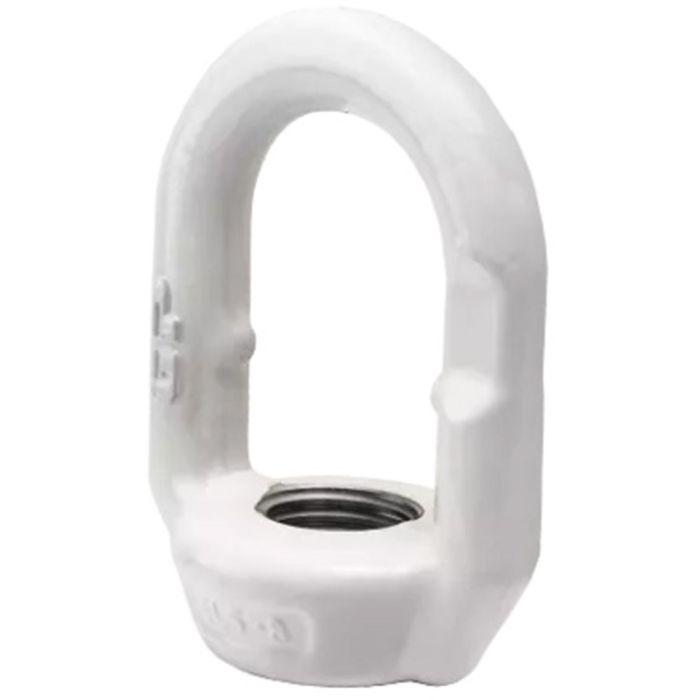

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard.
- Thread Diameter: M20 x 2.50
- Working Load Limit (WLL): 2.5 tons (5500 lbs)
- Bail Diameter: 9/16″
- Base Diameter: 1.73″
- Base Thickness: 0.63″
- Eye Inside Length: 2.36″
- Eye Inside Width: 1.46″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Design Factor 5:1
- Imported
