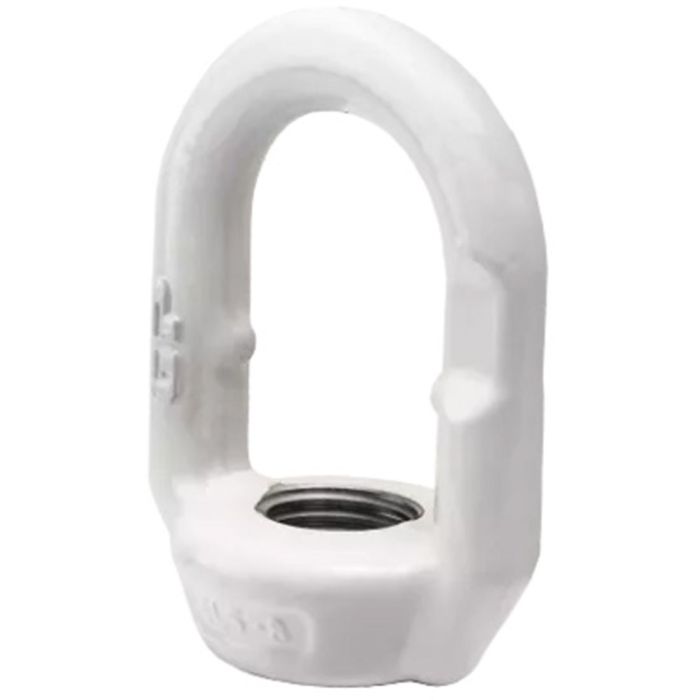

Green Pin EL Grade 80 Eye Nut M36 x 4.00 (31/32″ Bail Diameter)

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard.

• Thread Diameter: M36 x 4.00
• Working Load Limit (WLL): 8 tons (17,600 lbs)
• Bail Diameter: 31/32″
• Base Diameter: 3.31″
• Base Thickness: 1.54″
• Eye Inside Length: 3.94″
• Eye Inside Width: 2.87″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 5:1
• Imported
