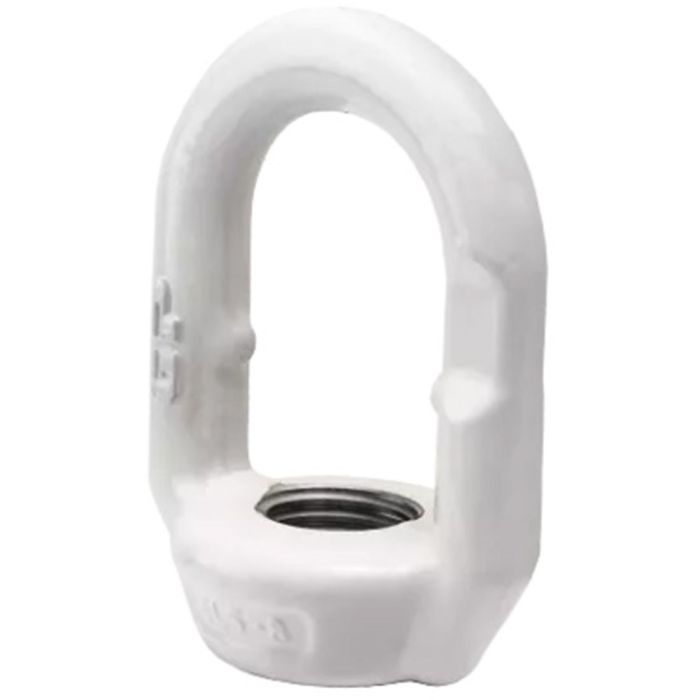

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard.
- Thread Diameter: M48 x 5.00
- Working Load Limit (WLL): 18 tons (39,600 lbs)
- Bail Diameter: 31/32″
- Base Diameter: 3.54″
- Base Thickness: 1.61″
- Eye Inside Length: 4.80″
- Eye Inside Width: 3.23″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Design Factor 5:1
- Imported
